Undermount Bathroom Sink - Stainless Steel OV1317U-5 Franke

Visit Franke brand page SKU: OV1317U-5
Finish - Stainless Steel
Save $-511.20
/
Special order item, terms and conditions apply. Ships in 10-15 days. *ships from online distribution centre.
Select My Store to view local stock.
Victoria
Check availability at other stores
Free Shipping Over $50*
Nationwide Reach
Easy Returns
Price Match Promise
Save $-511.20
/
Product Image
Undermount Bathroom Sink - Stainless Steel OV1317U-5 Franke
Save $-511.20
/

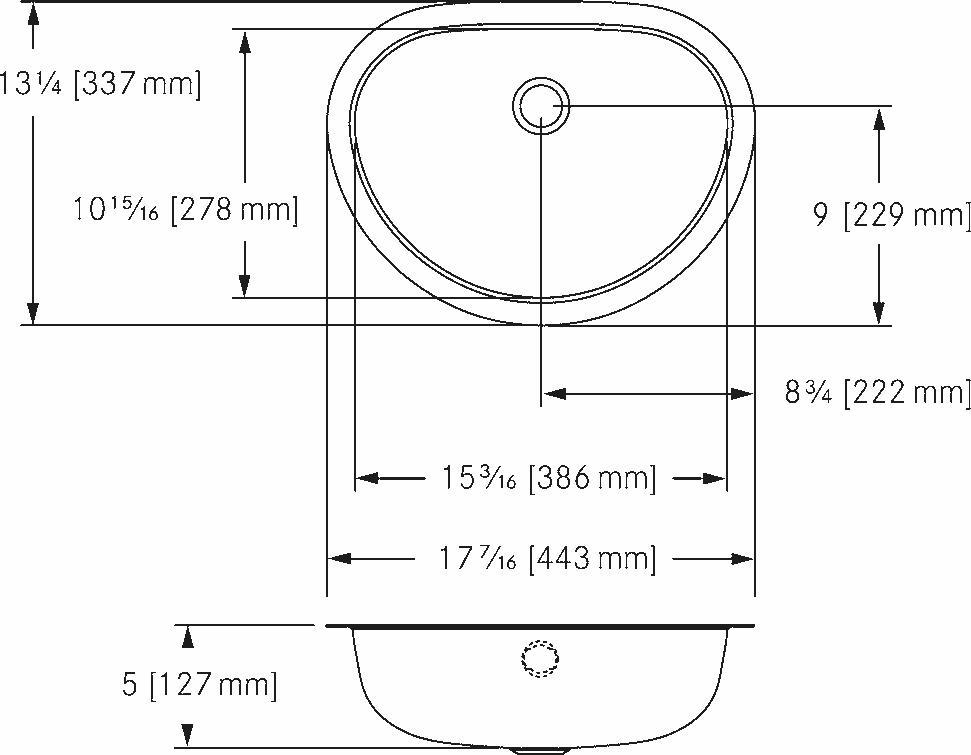

Single compartment undermount vanity basin. 18 gauge (1.2 mm), type 304 (CNS 18/10) stainless steel. Exposed surfaces are #4 satin finished. Undercoated to reduce condensation and resonance. Includes cutout template and installation hardware.  Certified to ASME A112.19.3-2008 / CSA B45.4-08. Wheelchair accessible: meets ADA (Americans with disabilities act guidelines), ANSI A117.1 (Accessible and usable buildings and facilities), and CSA B651-04 (Accessible design for the built environment). Check local codes to ensure compliance. Centre back waste location, accepts 1 1/4" (32 mm) waste assembly (not included), integral overflow at back of bowl. 13 1/4 x 17 7/16" Overall. 10 15/16 x 15 3/16 x 5" Bowl. (FB x LR x D). 337 x 443 mm Overall. 278 x 386 x 127 mm Bowl. (FB x LR x D).
  • Steel Type: Type 304
  • Material: Stainless Steel
  • # of Bowls: 1
  • Waste Location: Centre Back
  • Gauge: 18
  • Overflow Position: Back
  • Topmount
Specifications

Attributes & Dimensions
SKU OV1317U-5
UPC
Brand Franke
Series
Product Type Undermount Bathroom Sinks
Finish Stainless Steel
Bathroom Sink Material Stainless Steel
Installation Bathroom Sinks Undermount
Number of Faucet Holes 0
Origin China
Item Weight 8.84 lb.
Item Dimensions L 13.25 x W 17.4375 x H 5.0 (in.)
