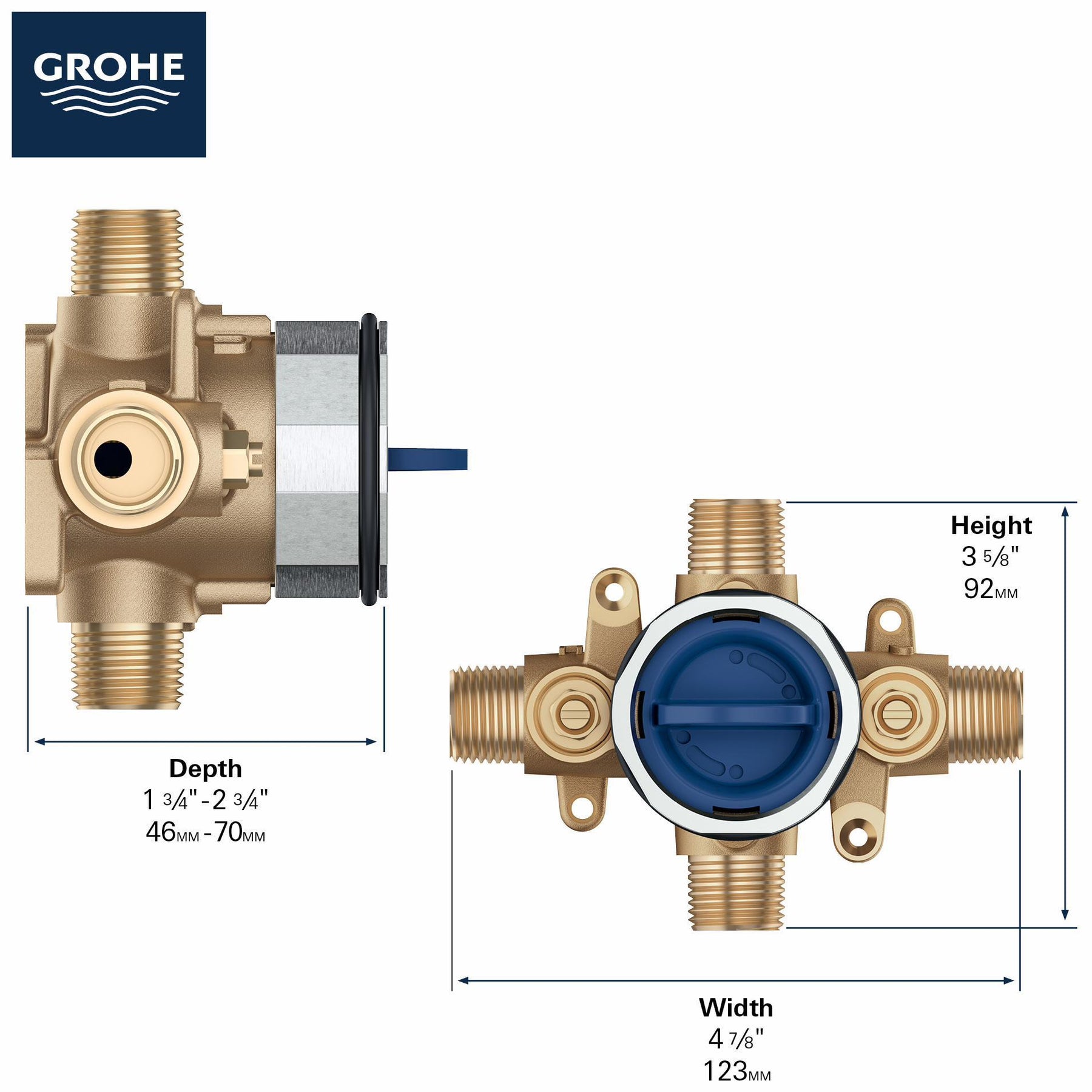

- Dimensions:
- H=7.09, W=4.88, D=5.75

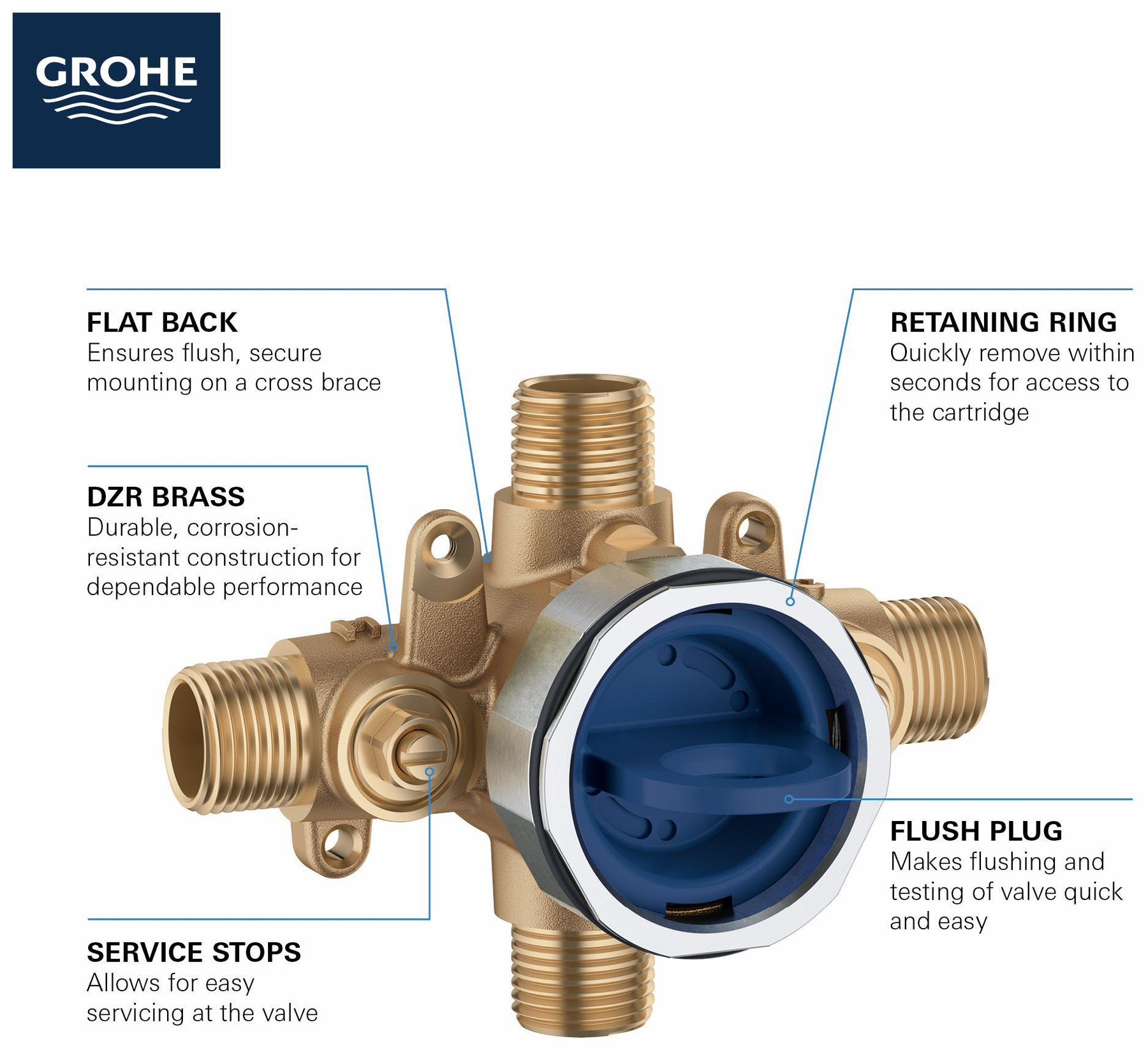

- DZR cast brass body is durable, corrosion resistant and ideal for prolonged contact with water
- Wide rough-in range from 1-3/4 in. to 2-3/4 in. from finished wall to back of valve

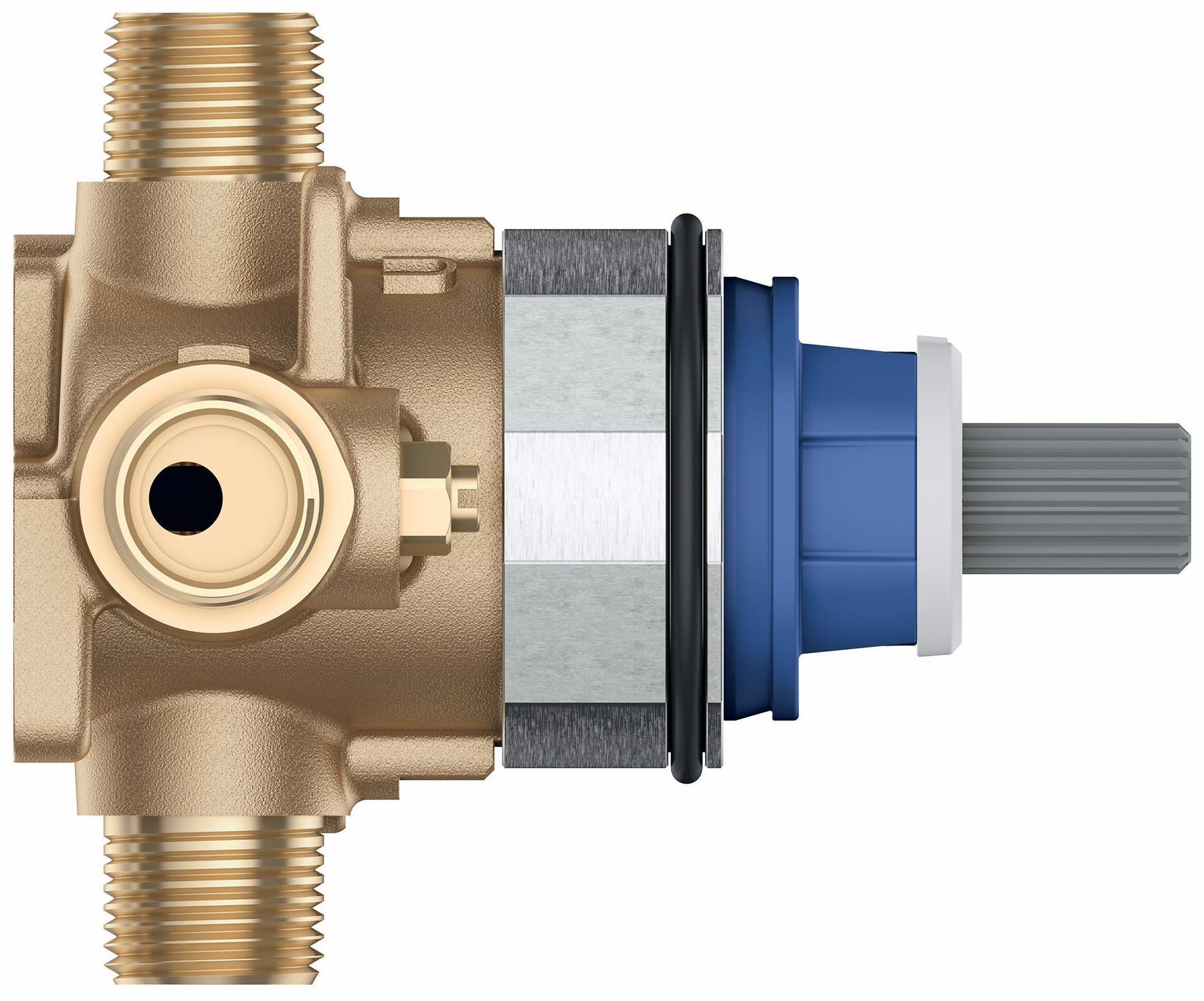

- Includes service stops for easy servicing at the valveCartridge ships with trim
- Stainless steel retaining ring with flats secures flush plug and cartridge, eliminating the need for screws
- Flush plug allows valve body to be tested and flushed without the presence of the valve cartridge (ships with trim)

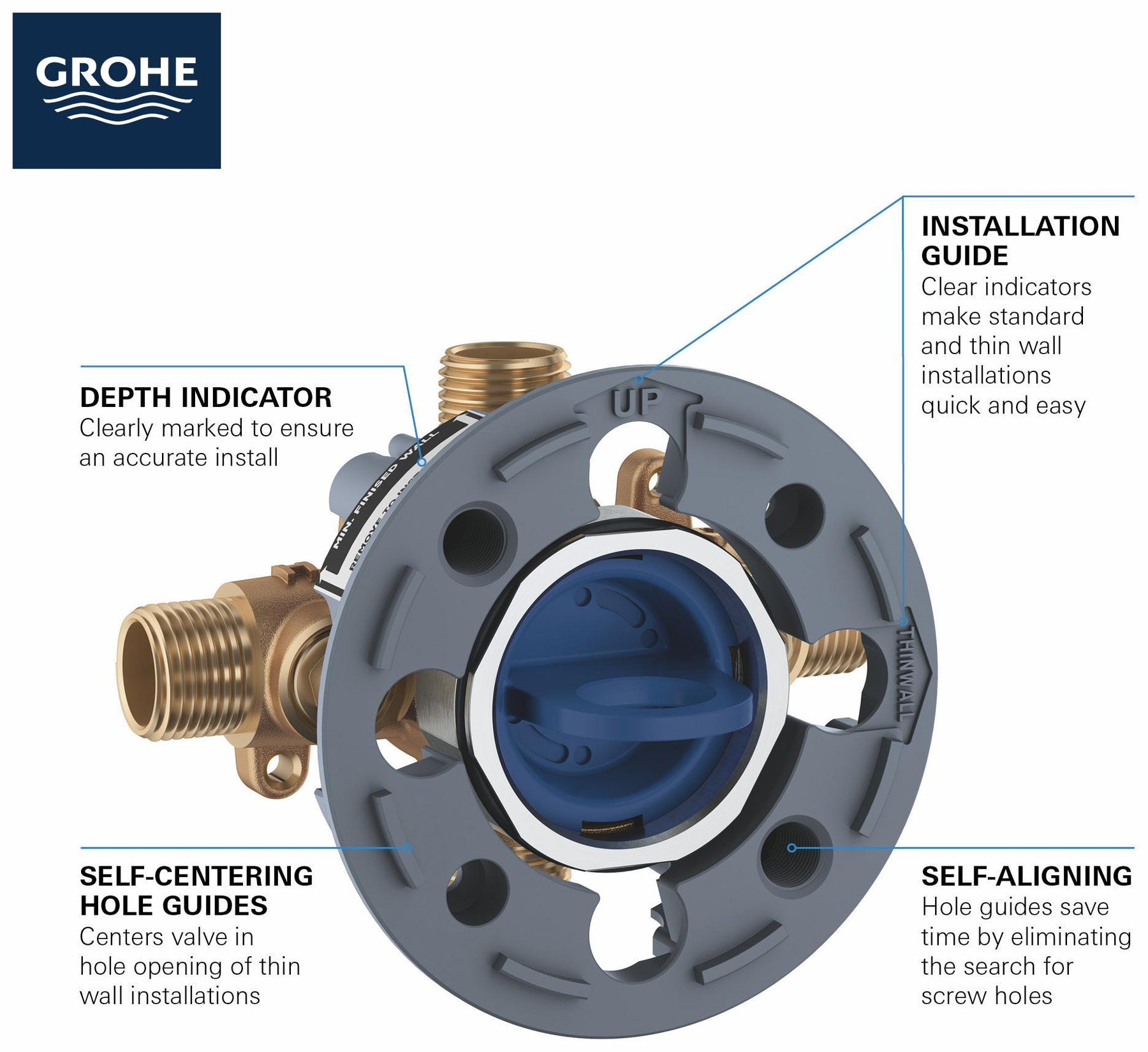

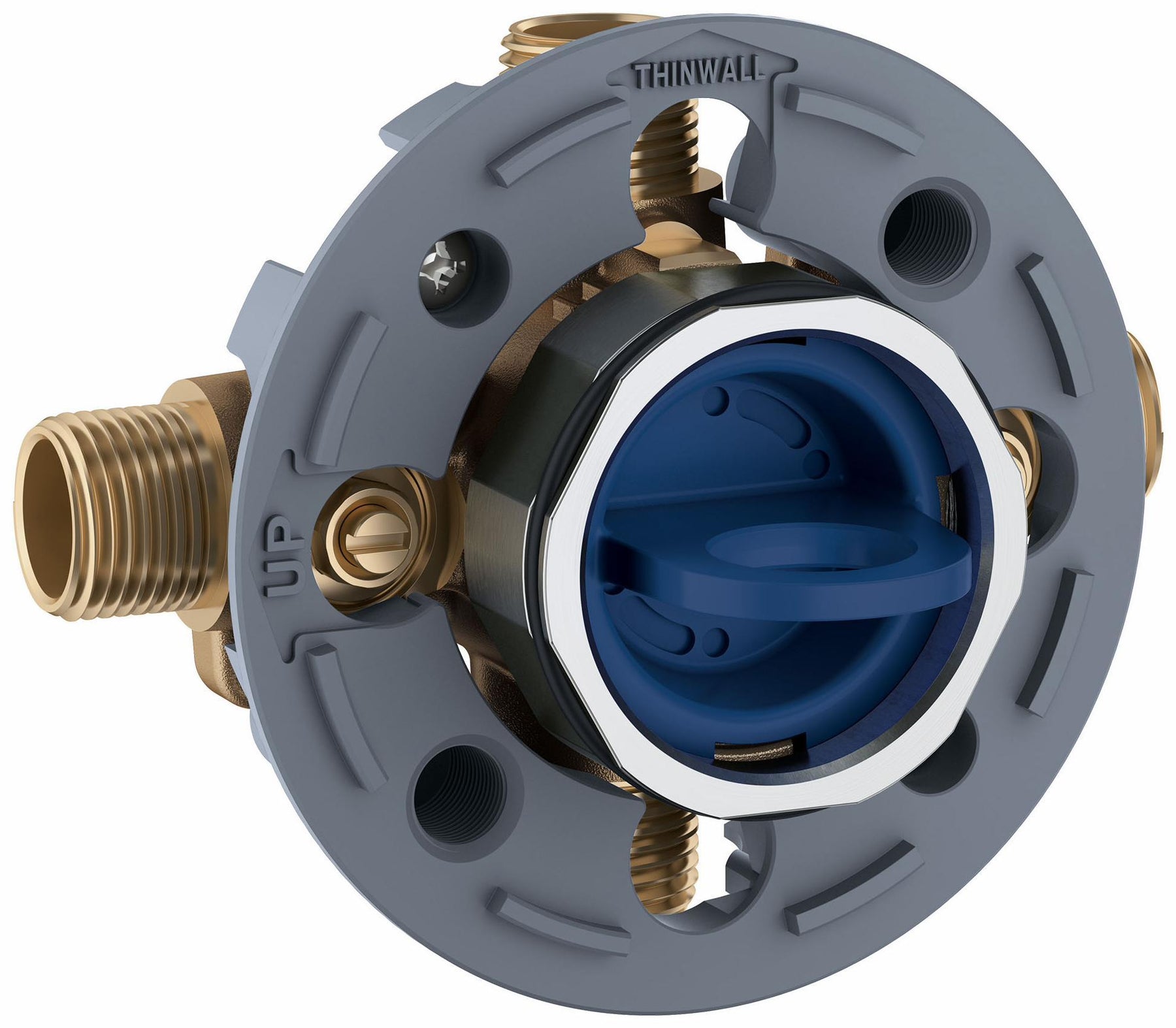

- Exclusive plaster guard is designed to protect valve and act as a guide during installation
- Can be tested using flush plug with air (200 psi) or water (300 psi)
- Back-to-back capability allowing hot and cold to be reversed quickly and easily
- Flat back allows valve to be mounted flush against cross brace for easy and solid installation

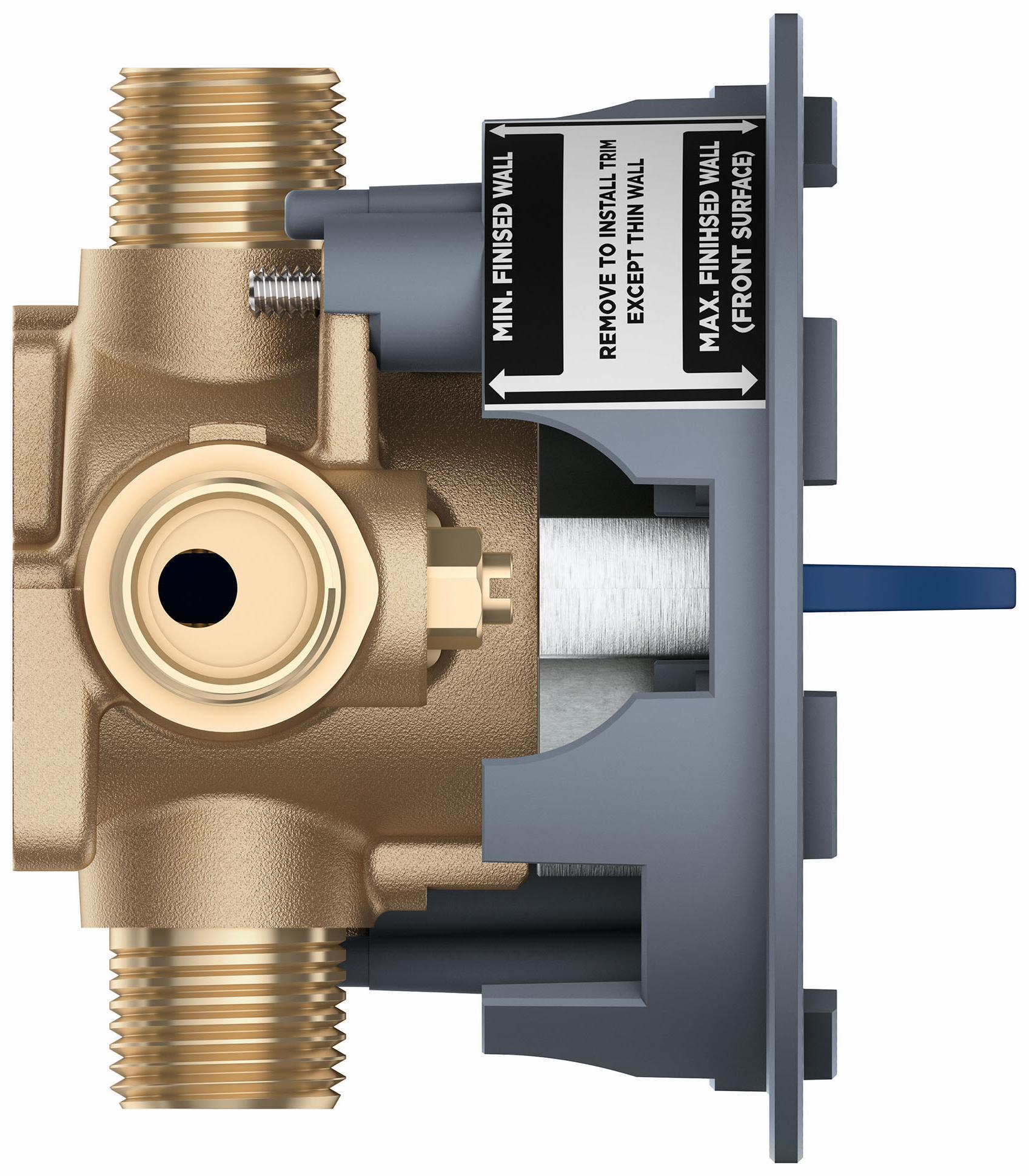

- Plaster guard can serve as mounting support for thin-wall installations
