Double compartment self rimming topmount sink less faucet ledge. 20 gauge (0.9 mm), type 302 (CNS 18/8) stainless steel. Exposed
surfaces are #4 satin finished. Undercoated to reduce condensation and resonance. Includes waste fittings, factory applied rim seal,
cutout template, and factory installed EZ TORQUE™ fasteners. Certified to ASME A112.19.3-2008 / CSA B45.4-08. Wheelchair accessible:
meets ADA (Americans with disabilities act guidelines) and ANSI A117.1 (Accessible and usable buildings and facilities). Check local

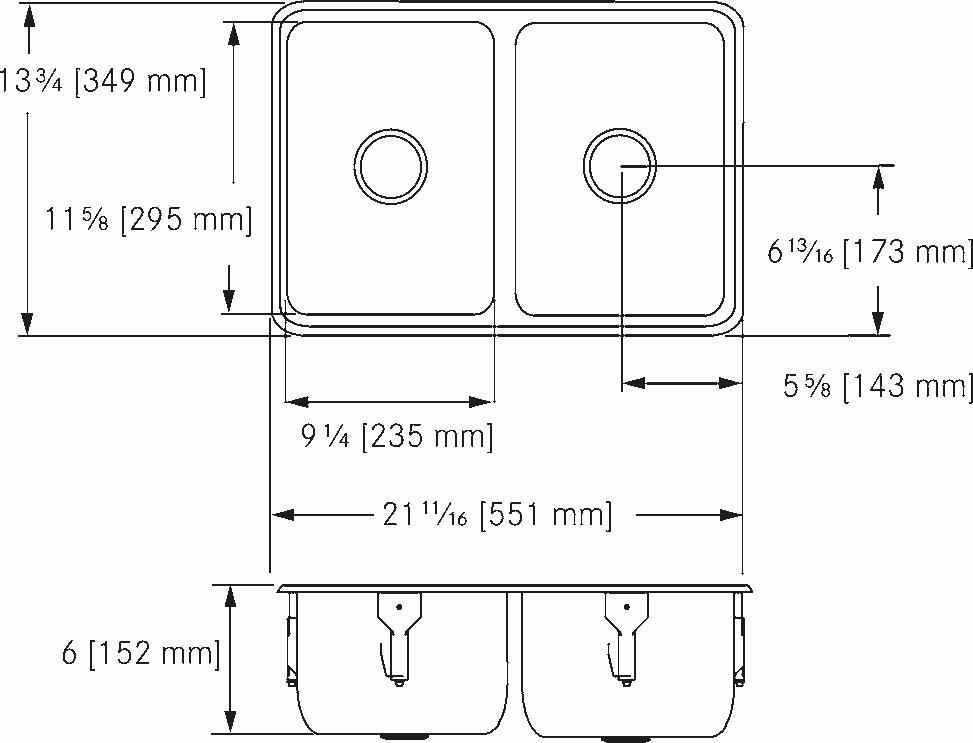

codes to ensure compliance. Centre waste location. Includes 3 1/2" (89 mm) crumb cup strainer with 1 1/2" (DN38) brass tailpiece. 13
3/4 x 21 11/16" Overall. 11 5/8 x 9 1/4 x 6" Bowl. (FB x LR x D). 349 x 551 mm Overall. 295 x 235 x 152 mm Bowl. (FB x LR x D).
- Steel Type: Type 302
- Material: Stainless Steel
- Gauge: 20
- Waste Location: Centre
- # of Bowls: 2
- Topmount
Specifications
| Attributes & Dimensions | |
|---|---|
| SKU | D1906-1 |
| UPC | |
| Brand | Franke |
| Series | |
| Product Type | Kitchen Sinks |
| Finish | Stainless Steel |
| Bowl Configuration | Equal Bowls |
| Bowl Depth | 6" |
| Installation Kitchen Sinks | Dual Mount |
| Minimum Cabinet Size | 24" |
| Number of Bowls | 2 |
| Number of Faucet Holes | 0 |
| Origin | Canada |
| Sink Material | Stainless Steel |
| Sink Type | Kitchen |
| Steel Gauge | 20 |
| Item Weight | 10.069185734875 lb. |
