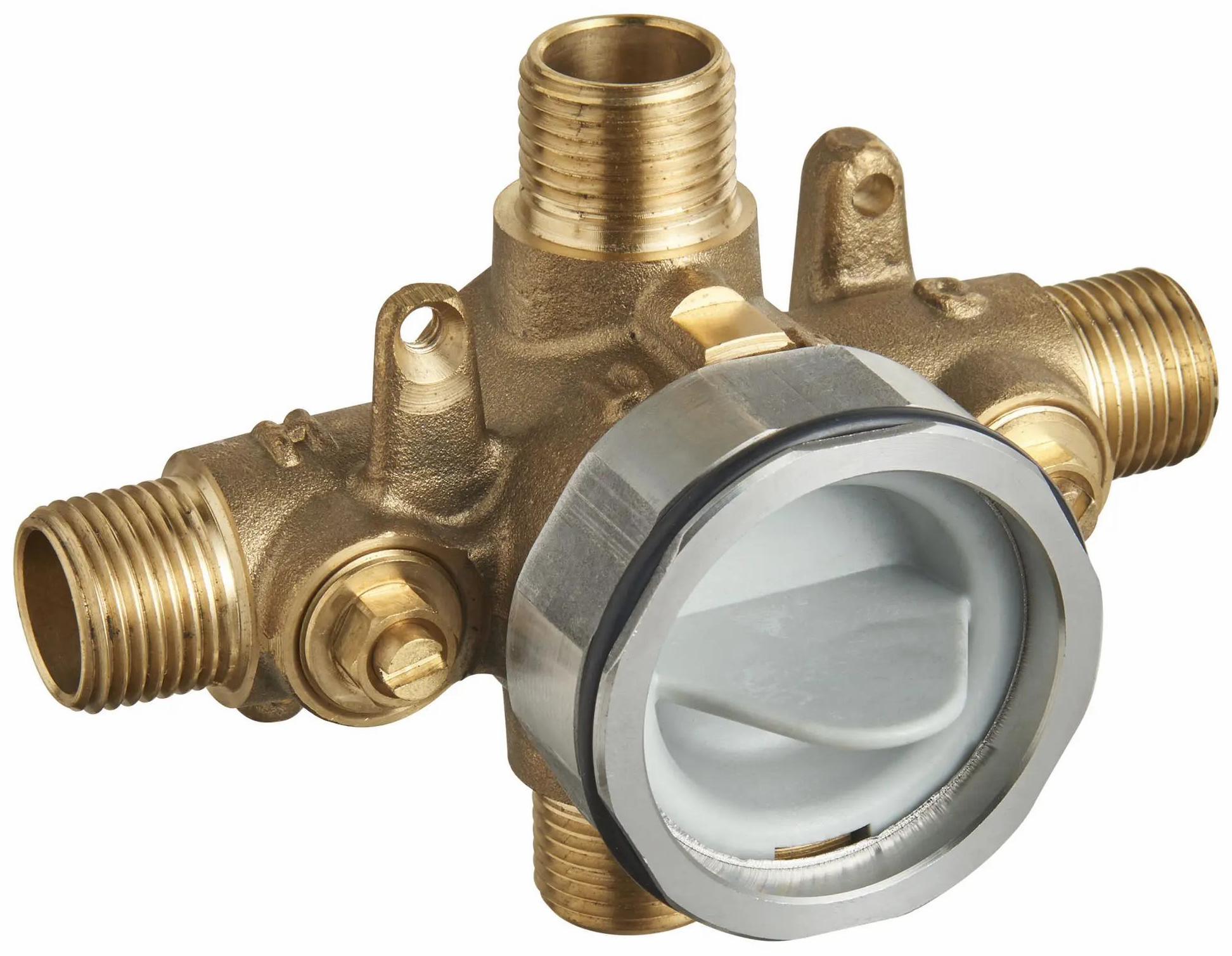

Flash™ Shower Rough-In Valve With Universal Inlets/Outlets With Screwdriver Stops
- Dimensions:
- H=4.25, W=5.69, D=6.31
- Back-to-back capability
- Brass valve body
- Includes test plug with stainless steel ring
- Cartridge ships with trim
- 1/2" Male NPT/Sweat inlets/outlets accept 1/2" copper, 1/2" iron pipe, PEX adapters
- Flow rate: 5.1 gpm @ 45 psi*
- Cast Brass Valve Body: Durable. Ideal material for prolonged contact with water
- Back-to-Back Capability: Hot and cold can be reversed quickly and easily
- Test Cap: Allows valve body to be tested and flushed without the presence of the valve cartridge. Can be tested using test cap with air (200 psi) or water (300 psi)
- Includes Scredriver Stops for easy servicing at the valve
- Exclusive Plaster Guard: Plaster guard is designed to protect valve and act as a guide during installation. It can serve as mounting support for thin-wall installations
- Stainless Steel Retaining Ring with Flats: Secures test cap/ cartridge in place and eliminates need for screws. Flats make it simple to loosen ring for quick, easy insertion/removal of test cap/cartridge
- Choice of Connections: Fast and easy installation without adaptors reducing leak points. Available connections include Universal (male thread/female sweat), PEX Crimp, PEX Cold expansion, CPVC, and Stub-outs
- Wide Rough-in Range: From 1-3/4" to 2-3/4" from finished wall to the back of the valve
- Flat Back: Allows valve to be mounted flush against cross brace for easy and solid installation
