Wheelchair accessible, single compartment, self rimming topmount sink with faucet ledge. 18 gauge (1.2 mm), type 304 (CNS 18/10)
stainless steel. Exposed surfaces are #4 satin finished. Undercoated to reduce condensation and resonance. Includes waste fitting,
factory applied rim seal, cutout template, and factory installed EZ TORQUE™ fasteners. Certified to ASME A112.19.3-2008 / CSA B45.4-
08.
Meets ADA (Americans with disabilities act guidelines) and ANSI A117.1 (Accessible and usable buildings and facilities). Check local
codes to ensure compliance. Centre waste location. Includes 3 1/2" (89 mm) crumb cup strainer with 1 1/2" (DN38) brass tailpiece.
Model Options, specify when ordering: ALBS2706P-1-1, 1 faucet hole, 1 1/2" diameter. ALBS2706P-1-3, 3 faucet holes, 1 1/2"

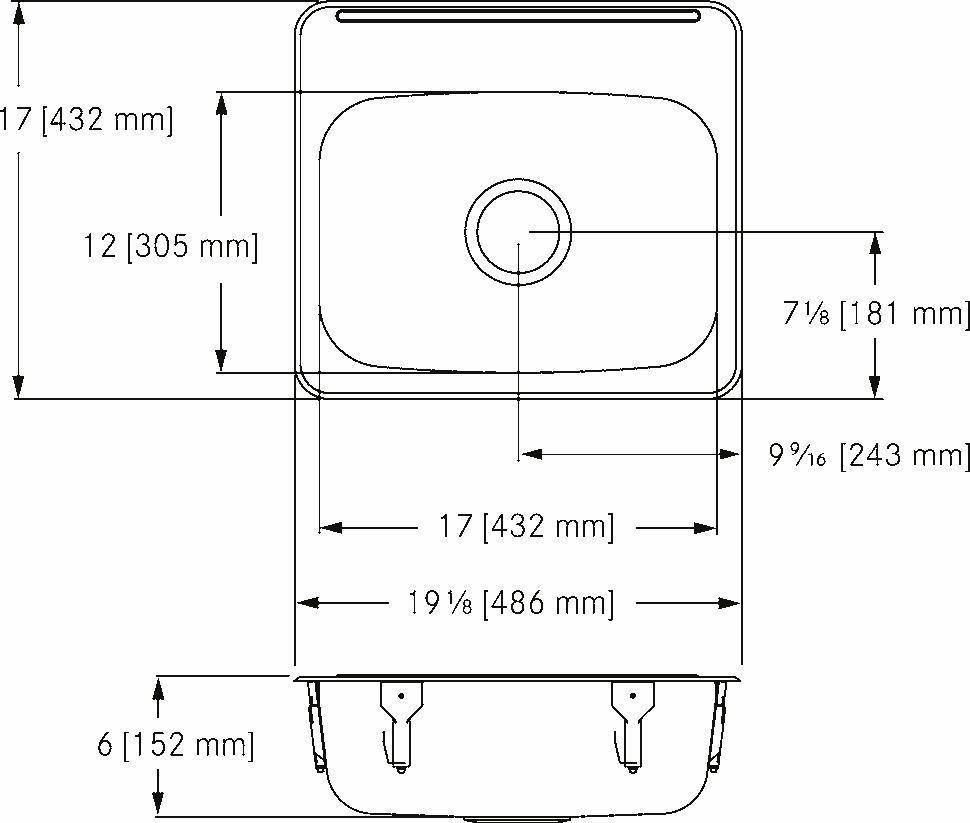

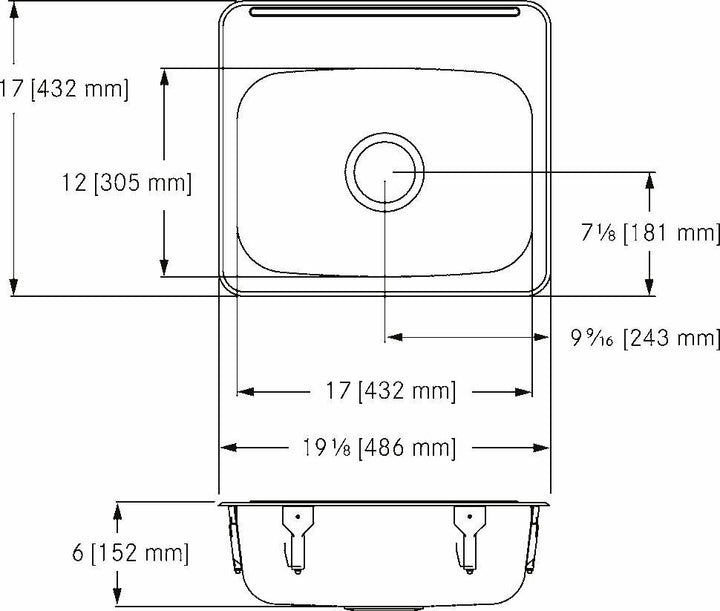

diameter, 4" centres, 8" centreset. ALBS2706P-1, Custom (non-returnable). 17 x 19 1/8" Overall. 12 x 17 x 6" Bowl. (FB x LR x D).
432 x 486 mm Overall. 305 x 432 x 152 mm Bowl. (FB x LR x D).
- Steel Type: Type 304
- Material: Stainless Steel
- # of Bowls: 1
- Waste Location: Centre
- Gauge: 18
- Topmount
Specifications
| Attributes & Dimensions | |
|---|---|
| SKU | ALBS2706P-1 |
| UPC | |
| Brand | Franke |
| Series | |
| Product Type | Kitchen Sinks |
| Finish | Stainless Steel |
| Bowl Configuration | Single Bowl |
| Bowl Depth | 6" |
| Installation Kitchen Sinks | Drop In / Top Mount |
| Minimum Cabinet Size | 20" |
| Number of Bowls | 1 |
| Number of Faucet Holes | 0 |
| Origin | Canada |
| Sink Material | Stainless Steel |
| Sink Type | Kitchen |
| Steel Gauge | 18 |
| Item Weight | 9.44719892108799 lb. |
