Double compartment self rimming topmount sink with faucet ledge. 18 gauge (1.2 mm), type 304 (CNS 18/10) stainless steel. Exposed
surfaces are #4 satin finished. Undercoated to reduce condensation and resonance. Includes waste fittings, factory applied rim seal,
cutout template, and factory installed EZ TORQUE™ fasteners. Certified to ASME A112.19.3-2008 / CSA B45.4-08. Wheelchair accessible:
meets ADA (Americans with disabilities act guidelines) and ANSI A117.1 (Accessible and usable buildings and facilities). Check local
codes to ensure compliance. Centre back waste location. Includes 3 1/2" (89 mm) crumb cup strainer with 1 1/2" (DN38) brass
tailpiece. Sink has Spillway® partition. Model Options: ALBD4406P-1-1, 1 faucet hole, 1 1/2" diameter, centred over partition.
ALBD4406P-1-3, 3 faucet holes, 1 1/2" diameter, 4" centres, 8" centreset. ALBD4406P-1, Custom (non-returnable). 18 13/16 x 31 1/4"

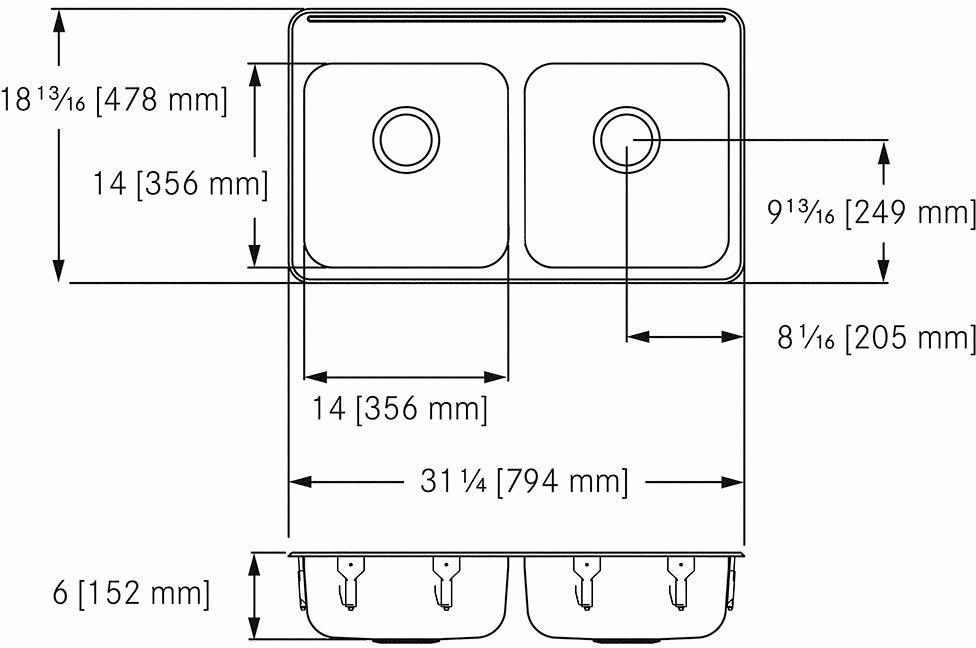

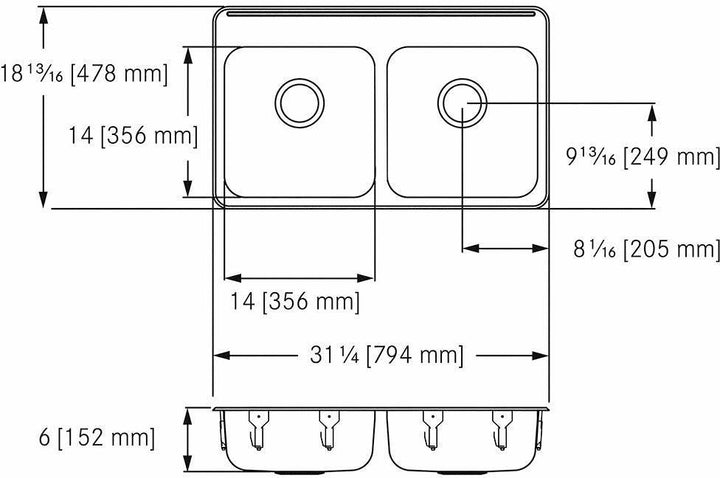

Overall. 14 x 14 x 6" Bowl. (FB x LR x D). 478 x 794 mm Overall. 356 x 356 x 152 mm Bowl. (FB x LR x D).
- Steel Type: Type 304
- Material: Stainless Steel
- Waste Location: Centre Back
- Gauge: 18
- # of Bowls: 2
- Topmount
Specifications
| Attributes & Dimensions | |
|---|---|
| SKU | ALBD4406P-1 |
| UPC | |
| Brand | Franke |
| Series | |
| Product Type | Kitchen Sinks |
| Finish | Stainless Steel |
| Bowl Configuration | Equal Bowls |
| Bowl Depth | 6" |
| Installation Kitchen Sinks | Drop In / Top Mount |
| Minimum Cabinet Size | 32" |
| Number of Bowls | 2 |
| Number of Faucet Holes | 0 |
| Origin | Canada |
| Sink Material | Stainless Steel |
| Sink Type | Kitchen |
| Steel Gauge | 18 |
| Item Weight | 18.861552880176 lb. |
