Drop-In Bathroom Sink - Stainless Steel V17-5D Franke

Visit Franke brand page SKU: V17-5D
Finish - Stainless Steel
Save $-329.60
/
Product is not available.
Free Shipping Over $50*
Nationwide Reach
Easy Returns
Price Match Promise
Save $-329.60
/
Product Image
Drop-In Bathroom Sink - Stainless Steel V17-5D Franke
Save $-329.60
/

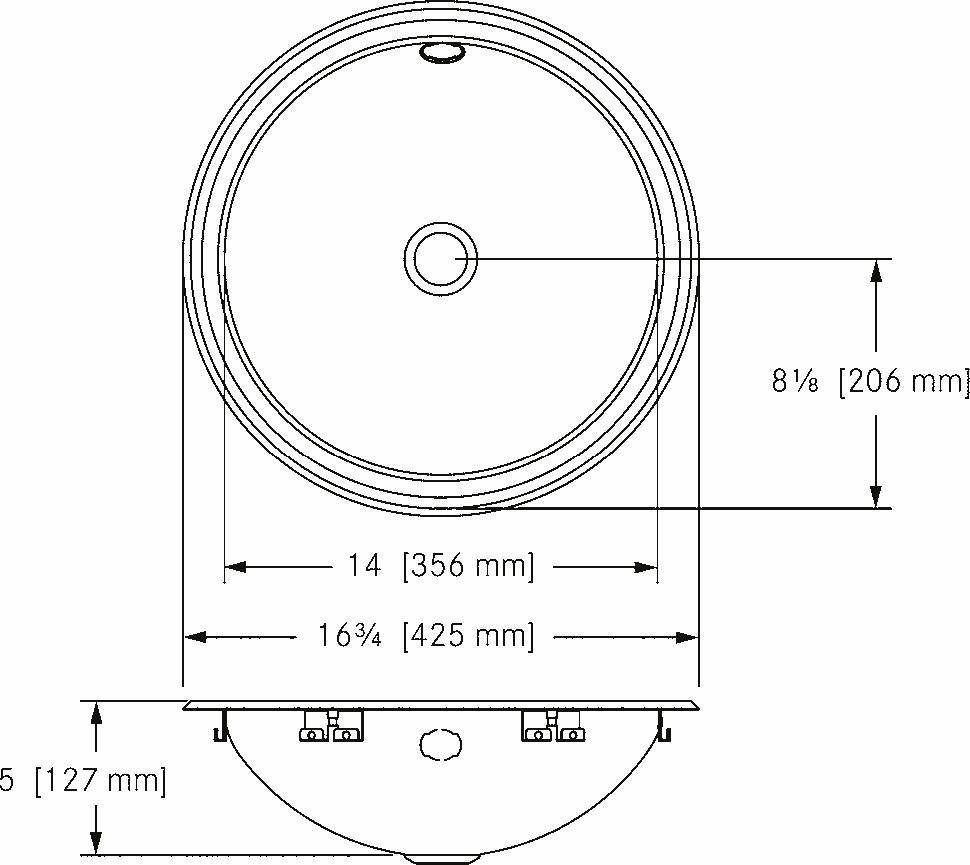

Single compartment self rimming vanity basin less faucet ledge. 18 gauge (1.2 mm), type 304 (CNS 18/10) stainless steel. Mirror finished rim, #4 satin finished bowl. Undercoated to reduce condensation and resonance. Includes factory applied rim seal, cutout template, and installation hardware. Certified to ASME A112.19.3-2008 / CSA B45.4-08. Wheelchair accessible: meets ADA (Americans with disabilities act guidelines), ANSI A117.1 (Accessible and usable buildings and facilities), and CSA B651-04 (Accessible design for the built environment). Check local codes to ensure compliance. Centre waste location, accepts 1 1/2" (38 mm) waste assembly, model 100 (not included). No overflow. 16 3/4 x 16 3/4" Overall. 14 x 14 x 5" Bowl. (FB x LR x D). 425 x 425 mm Overall. 356 x 356 x 127 mm Bowl. (FB x LR x D).
  • Steel Type: Type 304
  • Material: Stainless Steel
  • # of Bowls: 1
  • Waste Location: Centre
  • Gauge: 18
  • Topmount
Specifications

Attributes & Dimensions
SKU V17-5D
UPC
Brand Franke
Series
Product Type Drop In Bathroom Sinks
Finish Stainless Steel
Bathroom Sink Material Stainless Steel
Installation Bathroom Sinks Drop In / Countertop
Number of Faucet Holes 0
Origin China
Item Weight 7.735 lb.
Item Dimensions L 16.75 x W 16.75 x H 5.0 (in.)
