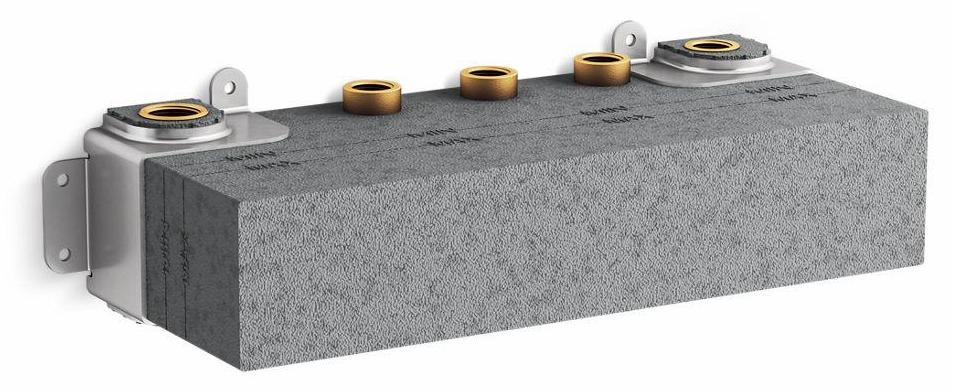

Thermostatic technology allows you to maintain consistent temperature control in your showering system for the ultimate shower experience. This precision-engineered, best-in-class thermostatic valve comes mostly assembled for easy installation, and is designed for use with the elegant thermostatic valve control panel trim with recessed push-buttons. With four independently controllable ports, this valve is ideally suited for applications where up to four outlets are required.
- Dimensions:
- H=4.875, W=16.5, D=6.125
- Adjustable comfort setting (preset at approximately 104°F).
- Mechanically controlled thermostatic mixing valve maintains outlet temperature throughout shower experience.
- Antiscald protection.
- Integrated adjustable high-temperature limit stop to control maximum water temperature.
- Service stops with integral filters.
- Up to 8 gpm (30.3 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 7 gpm (26.5 lpm) from one outlet.
- High-flow thermostatic mixing valve.
- Includes optional flow restrictor, limiting total flow to 1.75 gpm (6.6 lpm), for installations where water conservation or CEC compliance is desired
- 3/4" female NPT inlet connections
- 1/2" female NPT outlets
- 1/2 female NPT outlets
- 3/4 female NPT inlet connections
