The new KOHLER Rite-Temp valve system sets new standards for ease of installation, application versatility, and long-term reliability, simplifying your plumbing project and providing maximum flexibility for future changes or upgrades. The Rite-Temp valve platform uses the latest pressure-balancing technology to provide anti-scald protection and temperature control for enhanced showering comfort. Once the valve is installed, select your finished trim and finish from KOHLER's comprehensive design portfolio. Should you decide to remodel in the future, simply change out your trim for the latest design without the need to change the valve installation.
- Dimensions:
- H=5.0, W=5.875, D=4.8125

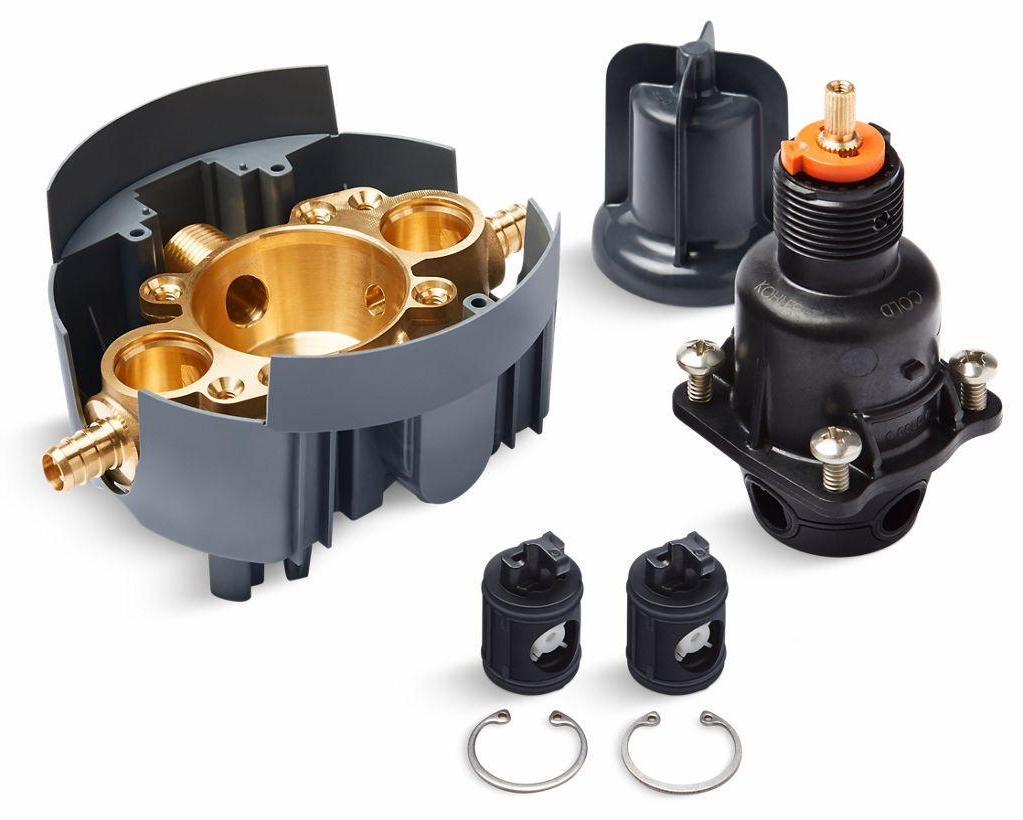

- Includes valve body, pressure balance cartridge, rough-in guide, and mudguard.
- Service stops include integral check valves.
- 1/2" Universal NPT & direct sweat outlets.
- Project Pack: Supplied 12 per case.
- 1/2" PEX Crimp (F1807 style) inlets, with stops.
- Single lever design cycles from off through cold to hot.
- One-piece cartridge design simplifies installation and maintenance.
- Antiscald protection.
- Adjustable high-temperature limit stop to control maximum water temperature.
- 5 gpm (18.9 l/min) maximum flow rate at 45 psi.
- Pressure-balancing diaphragm technology maintains outlet temperature within +/-3°F during water pressure fluctuations
- Requires valve trim to complete installation (sold separately)
- 1/2 PEX Crimp (F1807 style) inlets, with stops
- 1/2 Universal NPT & direct sweat outlets
