WhisperFit DC 50-80-110 CFM Bathroom Fan - White FV0511VF1 Panasonic

Visit Panasonic brand page SKU: FV0511VF1
Finish - White
Save $-187.75
/
10+ available for immediate shipping* *Ships from online distribution centre
Select My Store to view local stock.
Victoria
Check availability at other stores
Free Shipping Over $50*
Nationwide Reach
Easy Returns
Price Match Promise
Save $-187.75
/
Product Image
WhisperFit DC 50-80-110 CFM Bathroom Fan - White FV0511VF1 Panasonic
Save $-187.75
/
More from WhisperFit series
FV0511VFL1 product image.
Panasonic FV0511VFL1
WhisperFit
Bathroom Fans
FV0511VFC1 product image.
FV0511VFC1 product image.
Panasonic FV0511VFC1
WhisperFit
Bathroom Fans
FV0511VF1 product image.
FV0511VF1 product image.
Panasonic FV0511VF1
WhisperFit
Bathroom Fans
FV0511VFL1 product image.
Panasonic FV0511VFL1
WhisperFit
FV0511VFC1 product image.
FV0511VFC1 product image.
Panasonic FV0511VFC1
WhisperFit
FV0511VF1 product image.
FV0511VF1 product image.
Panasonic FV0511VF1
WhisperFit
WhisperFit DC Fan is an ideal retrofit solution. Built-in energy efficient ECM (DC) motor with Pick-A-Flow airflow selector allows you to select required airflow (50, 80 or 110 CFM). Single-hinged Flex-Z Fast bracket, pre-installed alignment guides, and temporary clip allows for flexible, fast and easy installation. Can be used to comply with the latest codes and standards.
  • Built-in Pick-A-Flow™ airflow selector allows you to select your required airflow of 50, 80, or 110 CFM with a simple flip of a switch
  • Built-in metal flange provides blocking for penetrations through drywall as an Air Barrier, and assists with the decrease in leakage in the Building Envelope during blower door testing
  • Revolutionary ECM motor with SmartFlow™ Technology ensures optimal CFM output
  • Temporary clip molded into casing holds fan in place while installer fastens fan to can safely
  • UL listed for tub/shower enclosure when GFCI protected and UL listed for use with the Panasonic Ceiling Radiation Damper (model # PC-RD05C5)
  • 6-year warranty ECM motor, 3-year warranty on parts, 5 year on LED chip panel
  • Low profile 5-5/8 housing depth fits in 2 x 6 joist size or larger
  • Pre-installed alignment guides help guide adaptor assembly into place during installation for a tight precision fit
  • Plastic standard 4” adapter with backdraft damper/shutter allows for better air tightness. (3" reducer included in box)
  • Slide and snap-in junction box and duct collar provide even greater installation flexibility
  • Single-hinged Flex-Z Fast® bracket provides flexible, fast and easy installation
  • Can be used to comply with ASHRAE 62.2, LEED, IAP and California Title 24
Specifications

Attributes & Dimensions
SKU FV0511VF1
Splashes Part ID 5040425
UPC 885170375468
Brand Panasonic
Series WhisperFit
Product Type Bathroom Fans
Finish White
Duct Size 4"
Features Bathroom Fans Energy Star
Mounting Style Ceiling Mount
Origin Mexico
Speed Variable
Voltage 120
Item Weight 7.85 lb.
Item Dimensions L 13.0 x W 13.0 x H 5.375 (in.)

Manufacturer Supplied Links

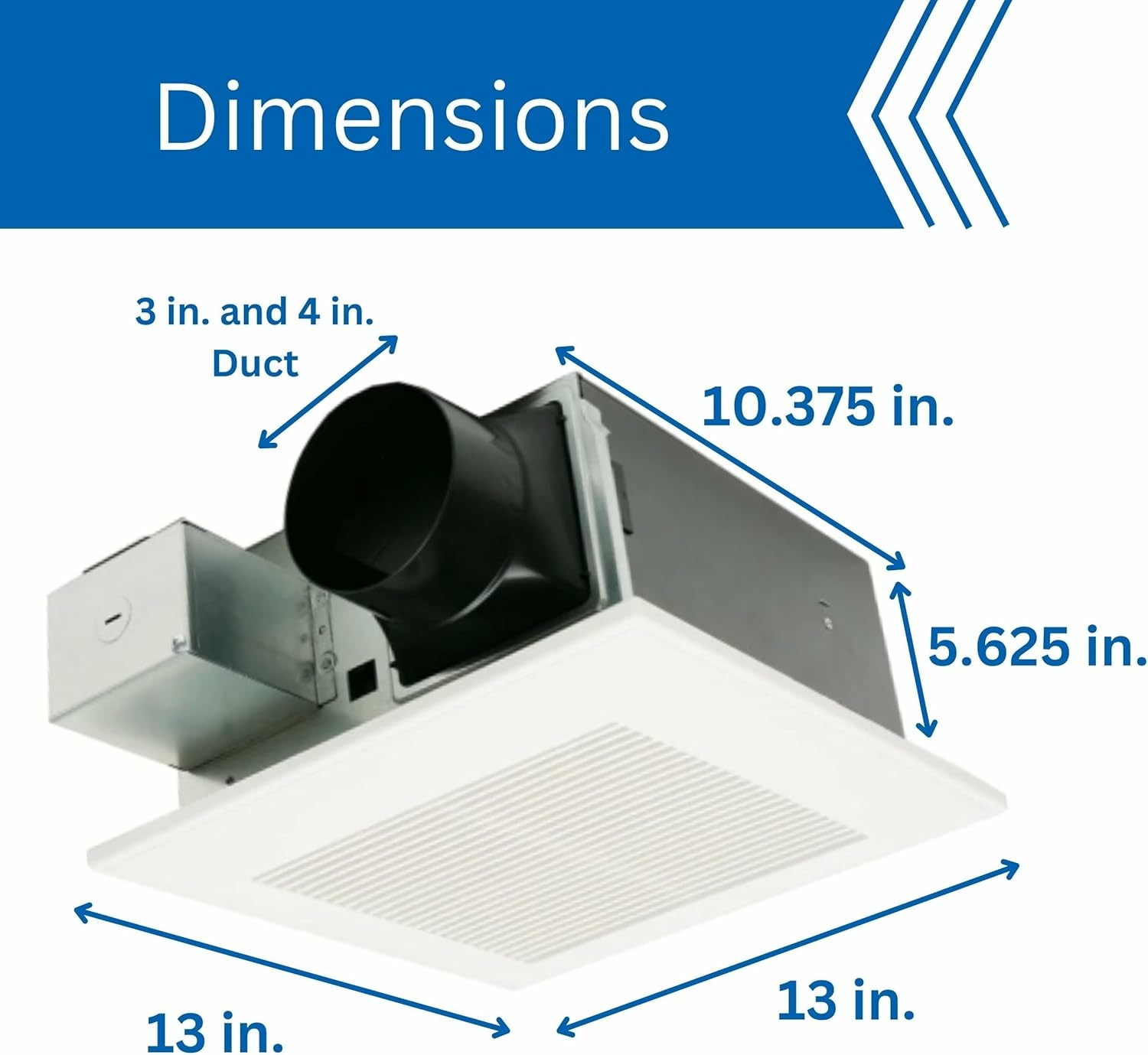

Compact Design for Retrofit Installations

Compact Design for Retrofit Installations

The WhisperFit DC features a slim 5.625" housing depth, 13" x 13" grille, and compatibility with both 3" and 4" duct connections. Its compact design is ideal for retrofit projects where installation space may be limited.

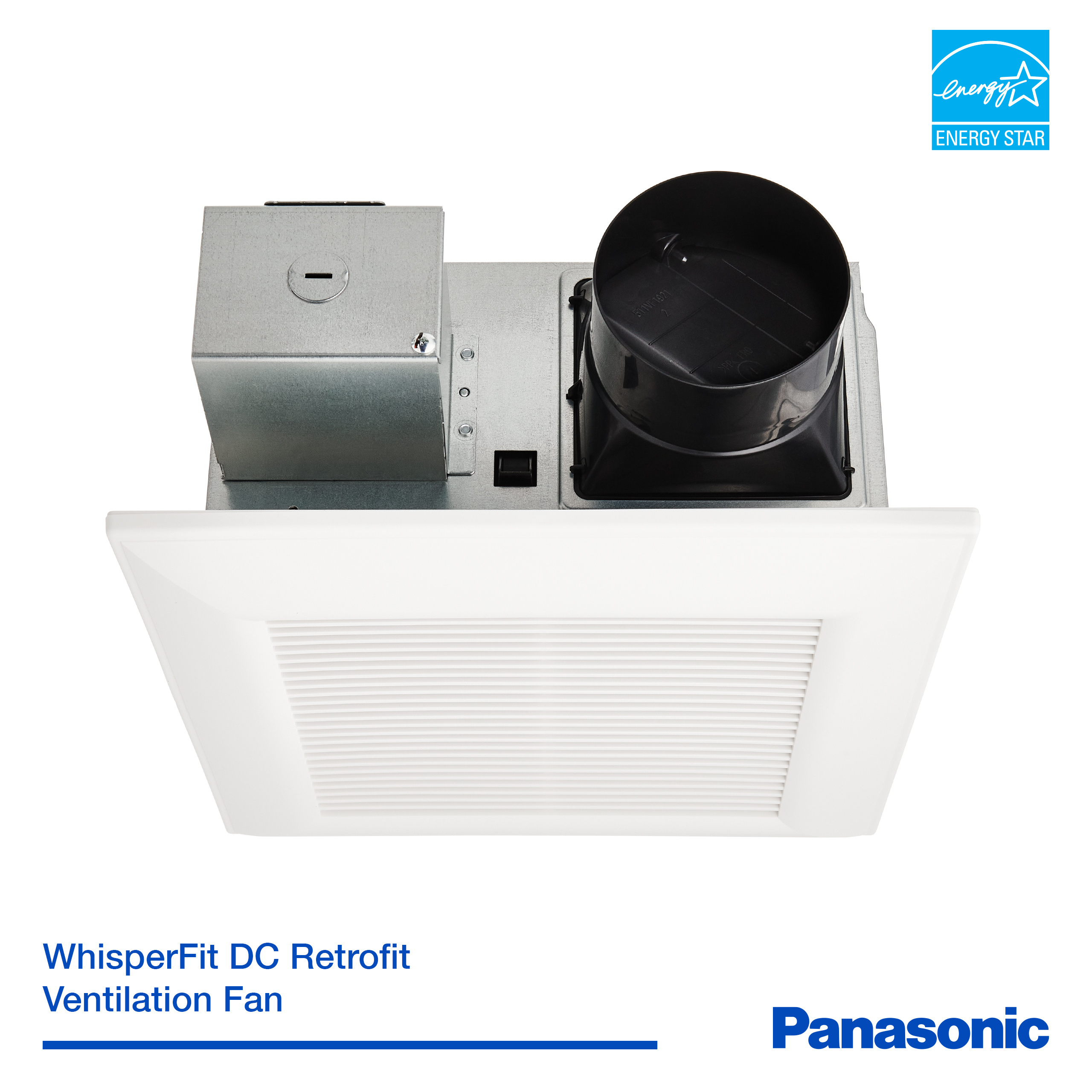

Designed Specifically for Remodel Projects

Designed Specifically for Remodel Projects

Engineered as a retrofit bathroom fan, the system is designed to simplify replacement installations while delivering reliable ventilation. Its space-saving profile helps make upgrading older bathroom fans faster and more convenient.

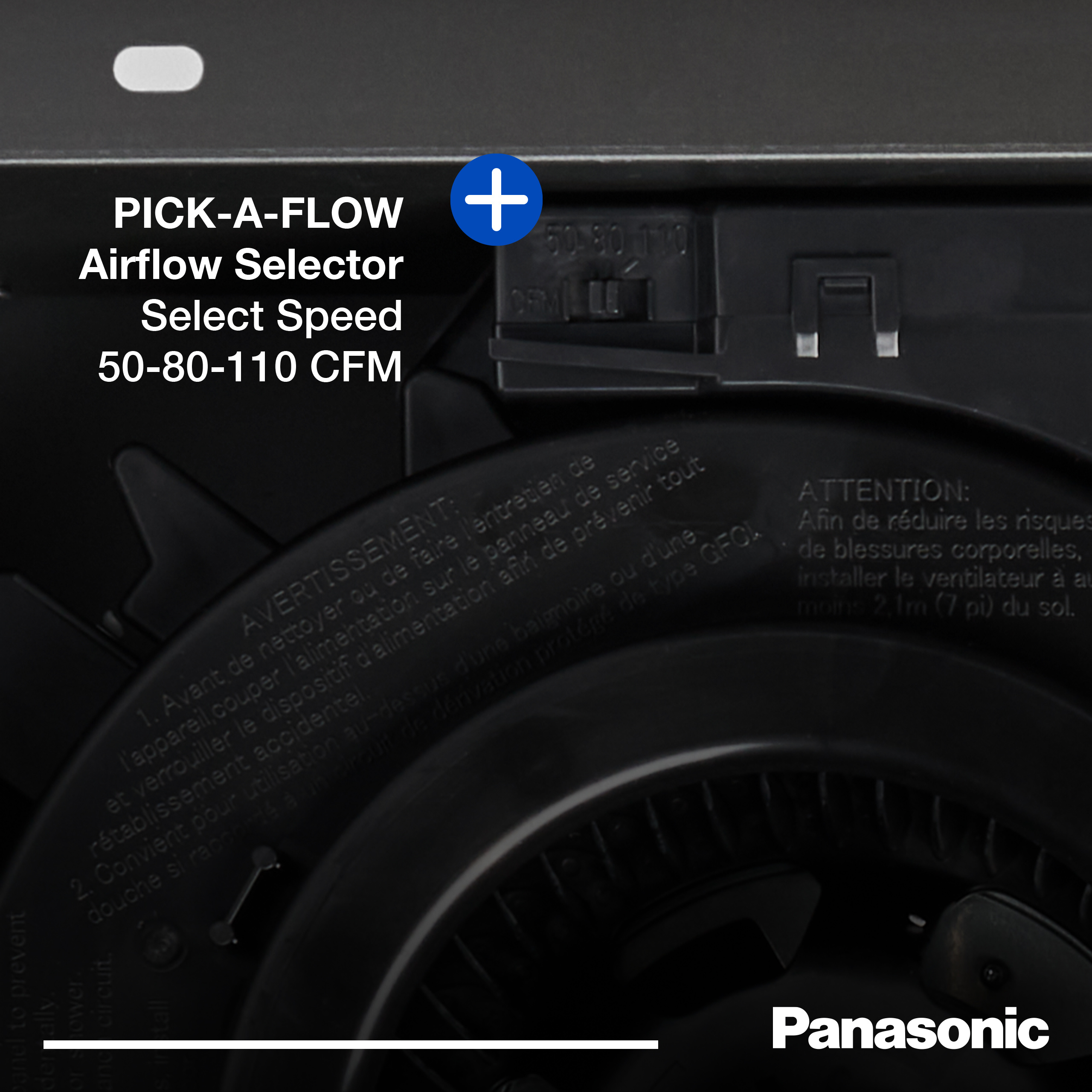

Pick-A-Flow® Airflow Selection Made Simple

Pick-A-Flow® Airflow Selection Made Simple

Panasonic's Pick-A-Flow® selector allows you to choose between 50, 80, or 110 CFM using a single fan. This flexible airflow system helps match ventilation performance to the room while simplifying planning, installation, and future upgrades.

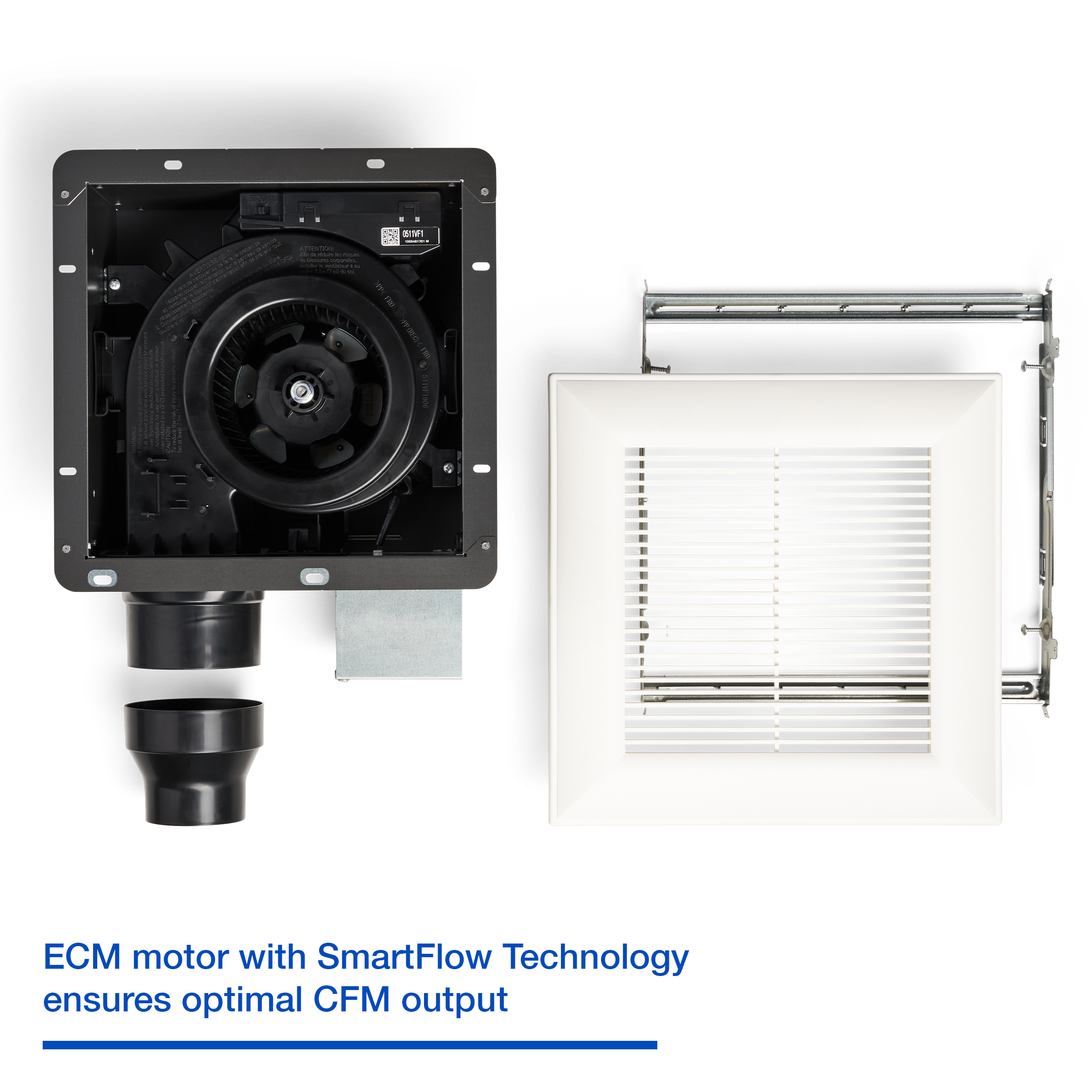

SmartFlow® Technology for Consistent Airflow

SmartFlow® Technology for Consistent Airflow

Powered by an energy-efficient ECM motor, the WhisperFit DC uses SmartFlow® technology to automatically adjust for changes in static pressure. This intelligent system helps maintain intended airflow performance, delivering reliable bathroom ventilation while maximizing energy efficiency.

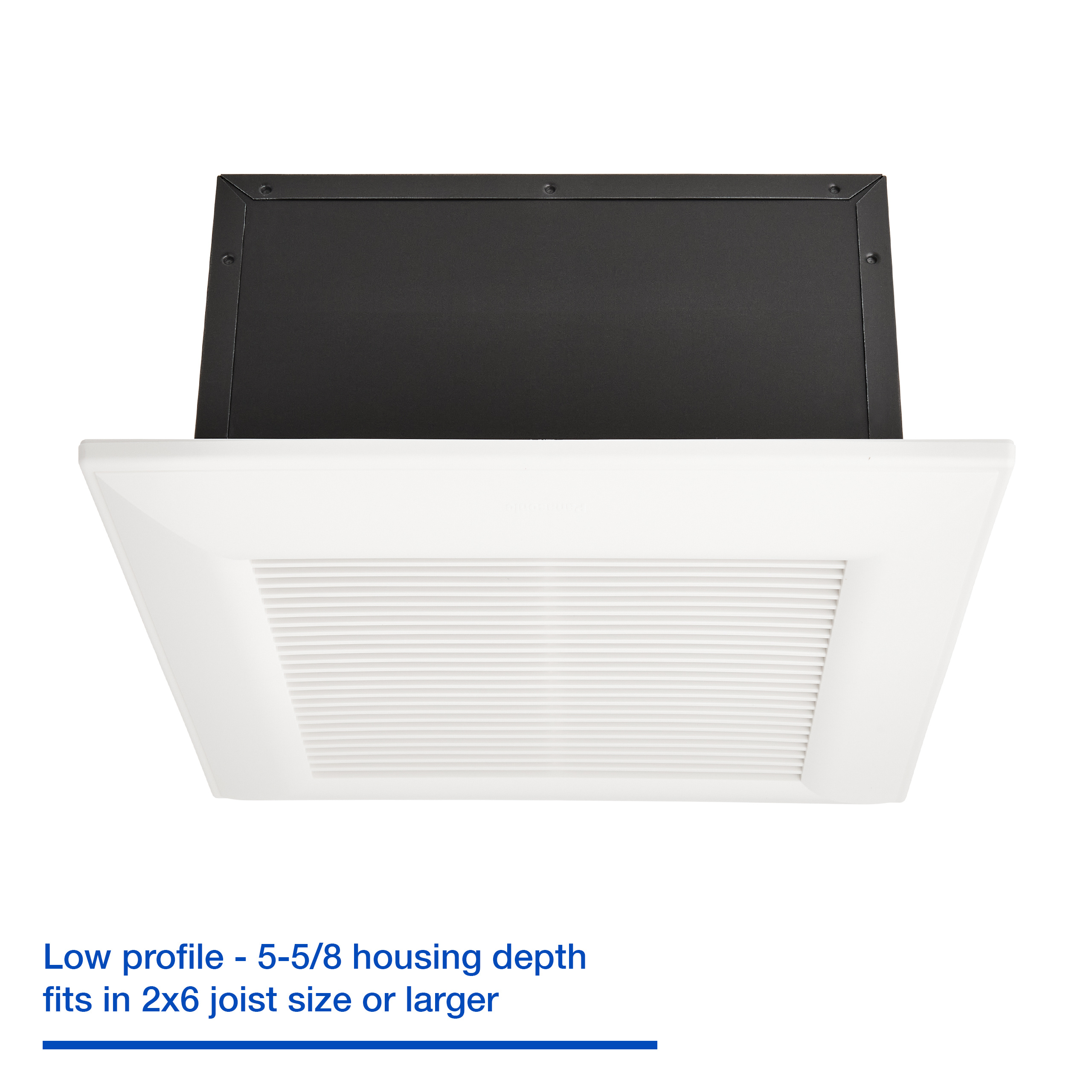

Low-Profile Design for Tight Spaces

Low-Profile Design for Tight Spaces

With a slim 5-5/8" housing depth, the system is designed to fit 2x6 joist construction and other space-constrained applications. Its compact profile makes it an ideal choice for remodels and retrofit bathroom fan installations.

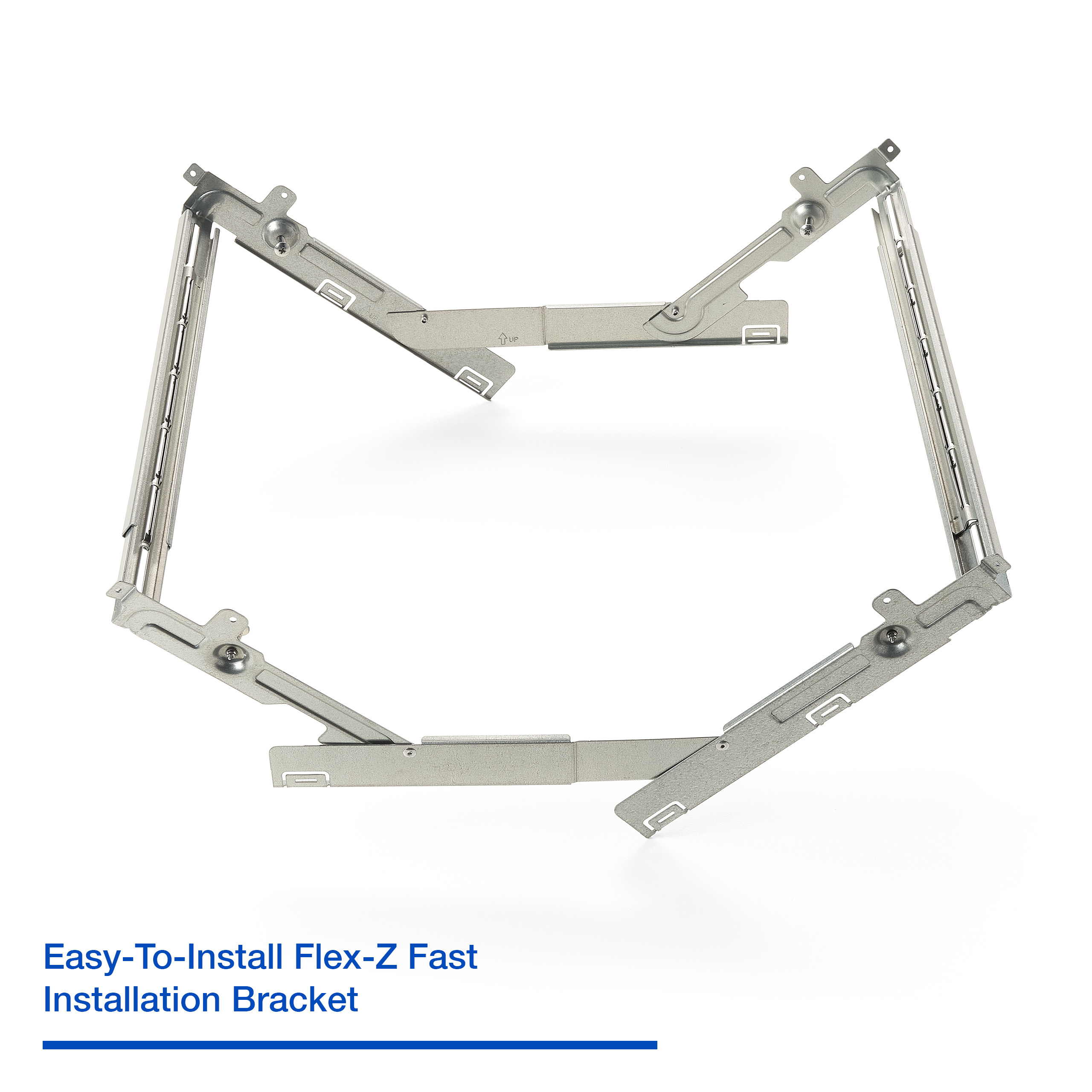

Easy Installation with Flex-Z Fast®

Easy Installation with Flex-Z Fast®

The Flex-Z Fast® bracket helps simplify installation by providing flexible positioning and secure mounting between joists. Designed with retrofit projects in mind, it helps reduce installation time while making fan replacement faster and more convenient.
