WhisperFit DC Retrofit Fan 50, 80 or 110 CFM FV0511VFC1 Panasonic

See more from Panasonic SKU: FV0511VFC1
Finish - Not Applicable
Save $-242.46
/
8 available for immediate shipping.
Select My Store to view local stock.
Free Shipping Over $50*
Nationwide Reach
Easy Returns
Price Match Promise
Save $-242.46
/
Product Image
WhisperFit DC Retrofit Fan 50, 80 or 110 CFM FV0511VFC1 Panasonic
Save $-242.46
/
More from WhisperFit series
FV0511VFL1K product image.
FV0511VFL1K product image.
Panasonic FV0511VFL1K
WhisperFit
Bathroom Fans
FV0511VFC1 product image.
FV0511VFC1 product image.
Panasonic FV0511VFC1
WhisperFit
Bathroom Fans
FV0511VFL1 product image.
Panasonic FV0511VFL1
WhisperFit
Bathroom Fans
FV0511VF1 product image.
FV0511VF1 product image.
Panasonic FV0511VF1
WhisperFit
Bathroom Fans
FV0511VFL1K product image.
FV0511VFL1K product image.
Panasonic FV0511VFL1K
WhisperFit

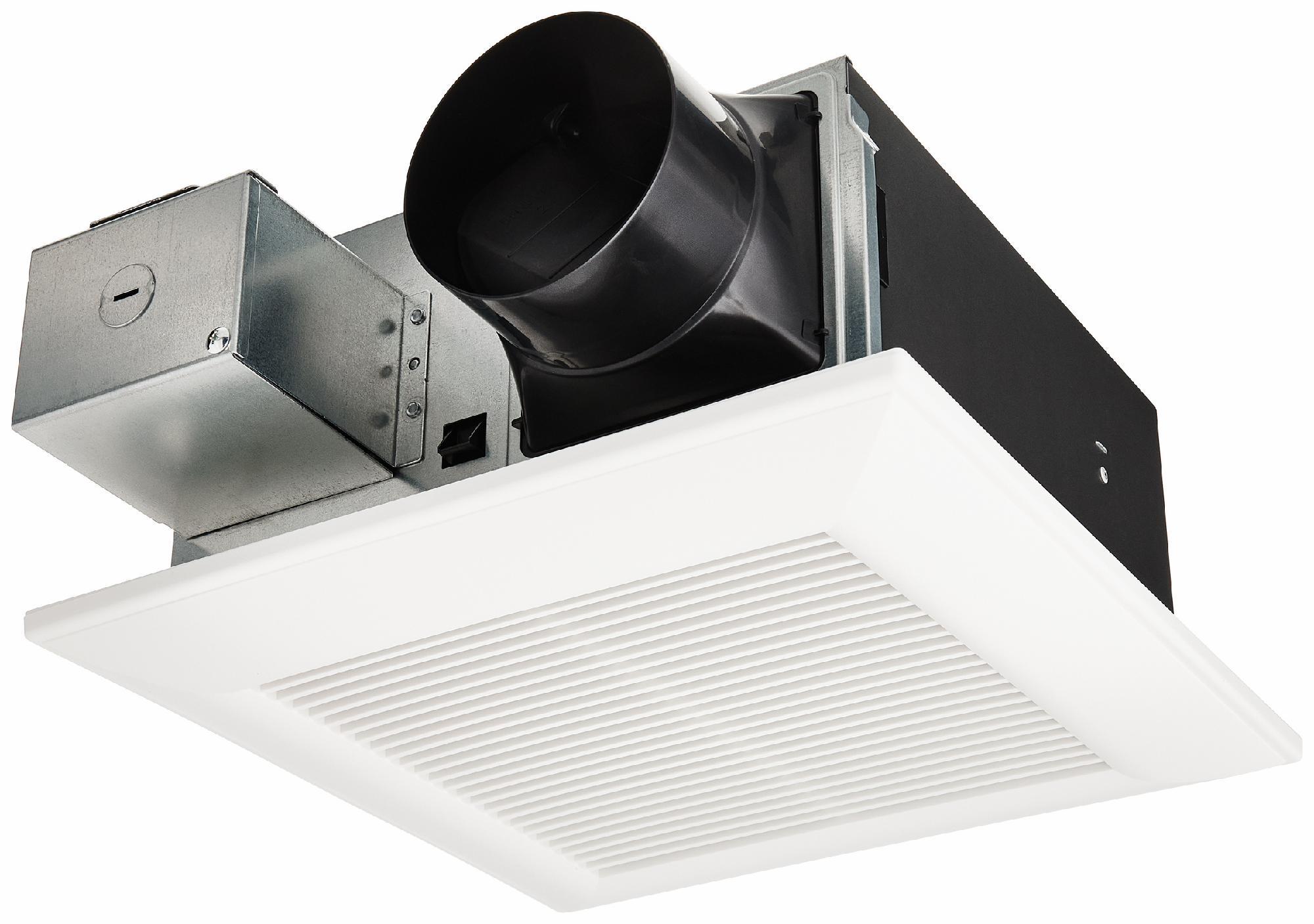

WhisperFit DC Fan / Condensation Model is an ideal retrofit solution. Built-in energy efficient ECM (DC) motor with Pick-A-Flow airflow selector allows you to select required airflow (50, 80 or 110 CFM). Single-hinged Flex-Z Fast bracket, pre-installed alignment guides, and temporary clip allows for flexible, fast and easy installation. Can be used to comply with the latest codes and standards.

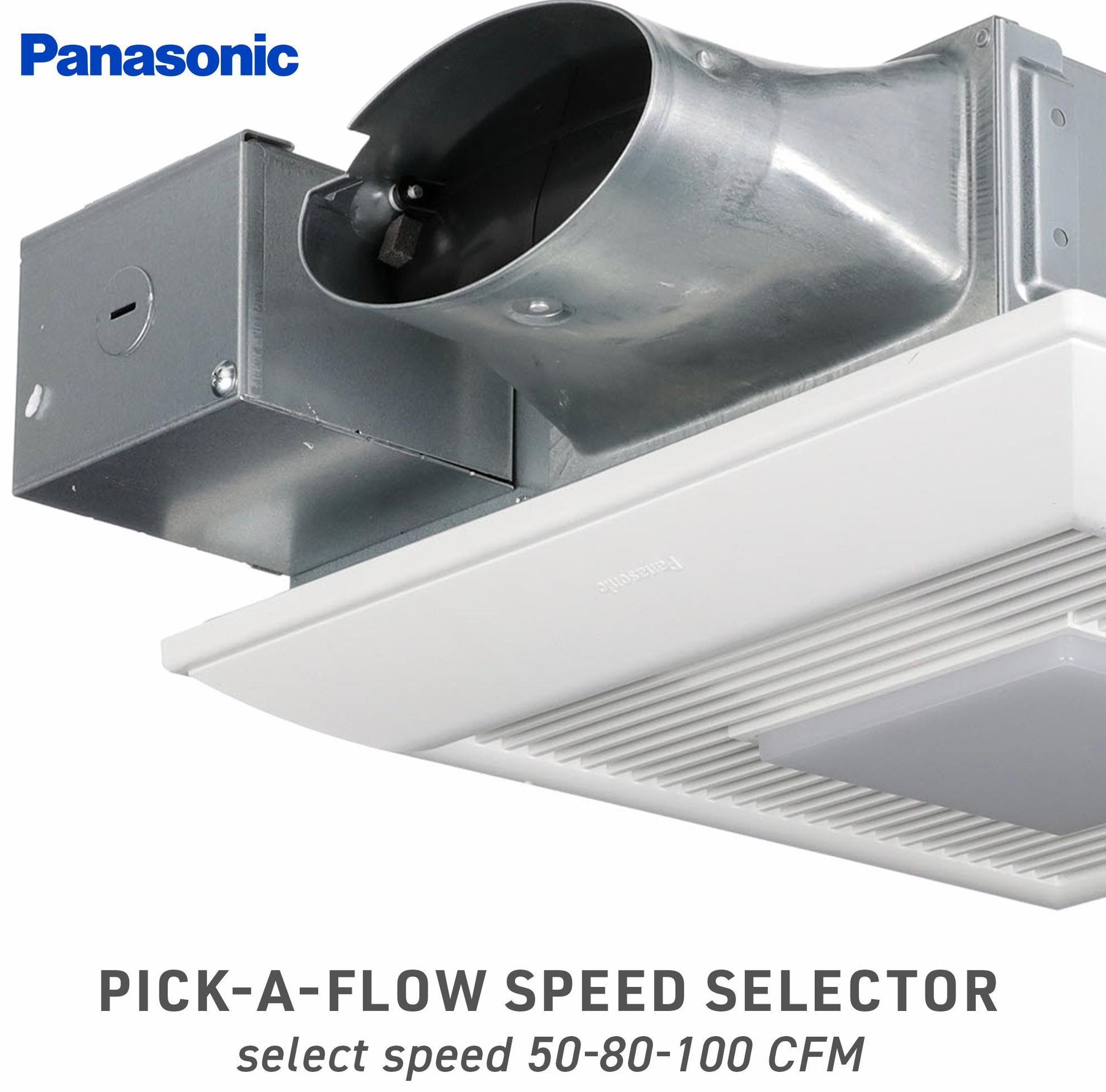

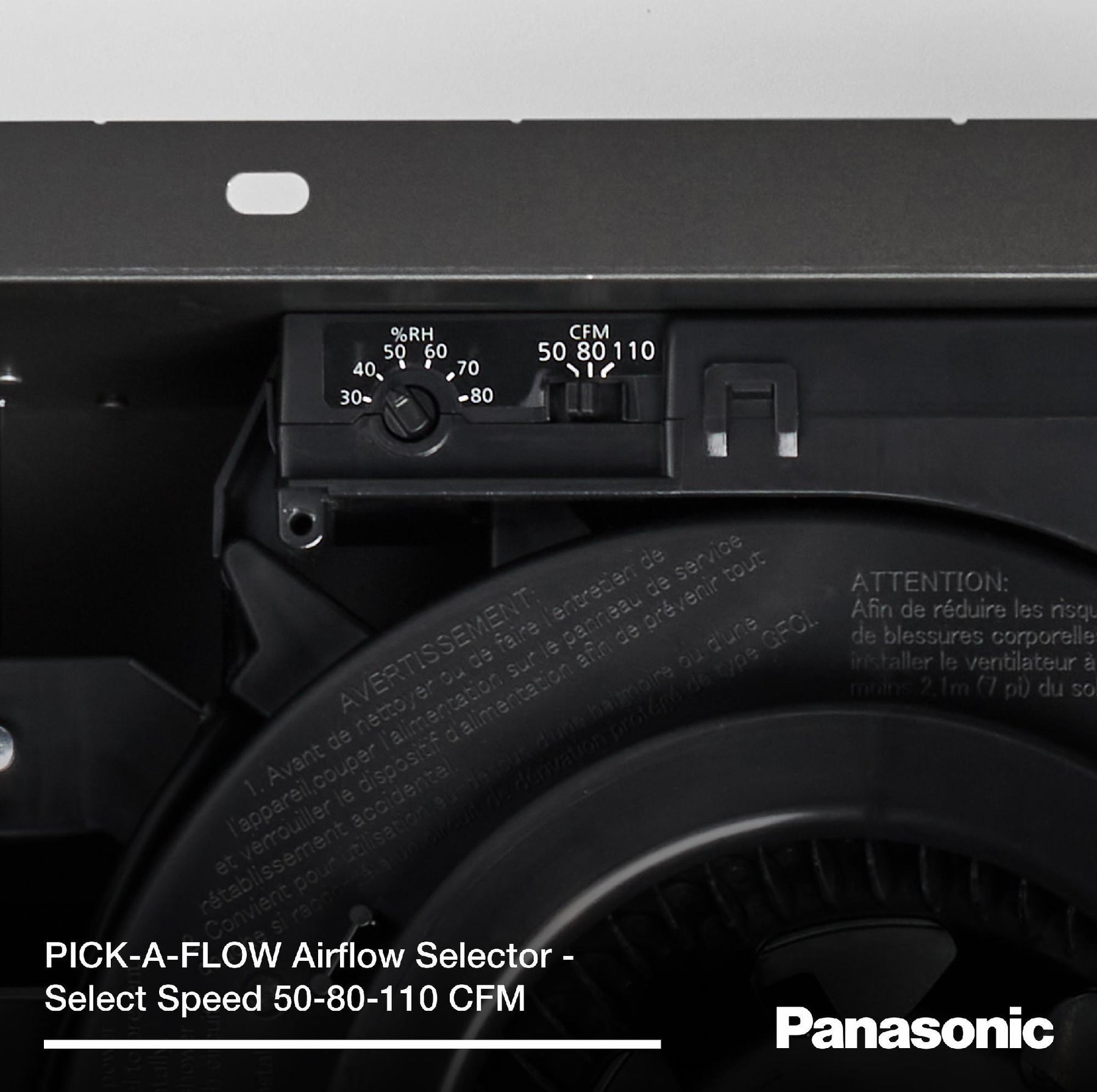

  • Built-in Pick-A-Flow™ airflow selector allows you to select your required airflow of 50, 80, or 110 CFM with a simple flip of a switch
  • Built-in metal flange provides blocking for penetrations through drywall as an Air Barrier, and assists with the decrease in leakage in the Building Envelope during blower door testing

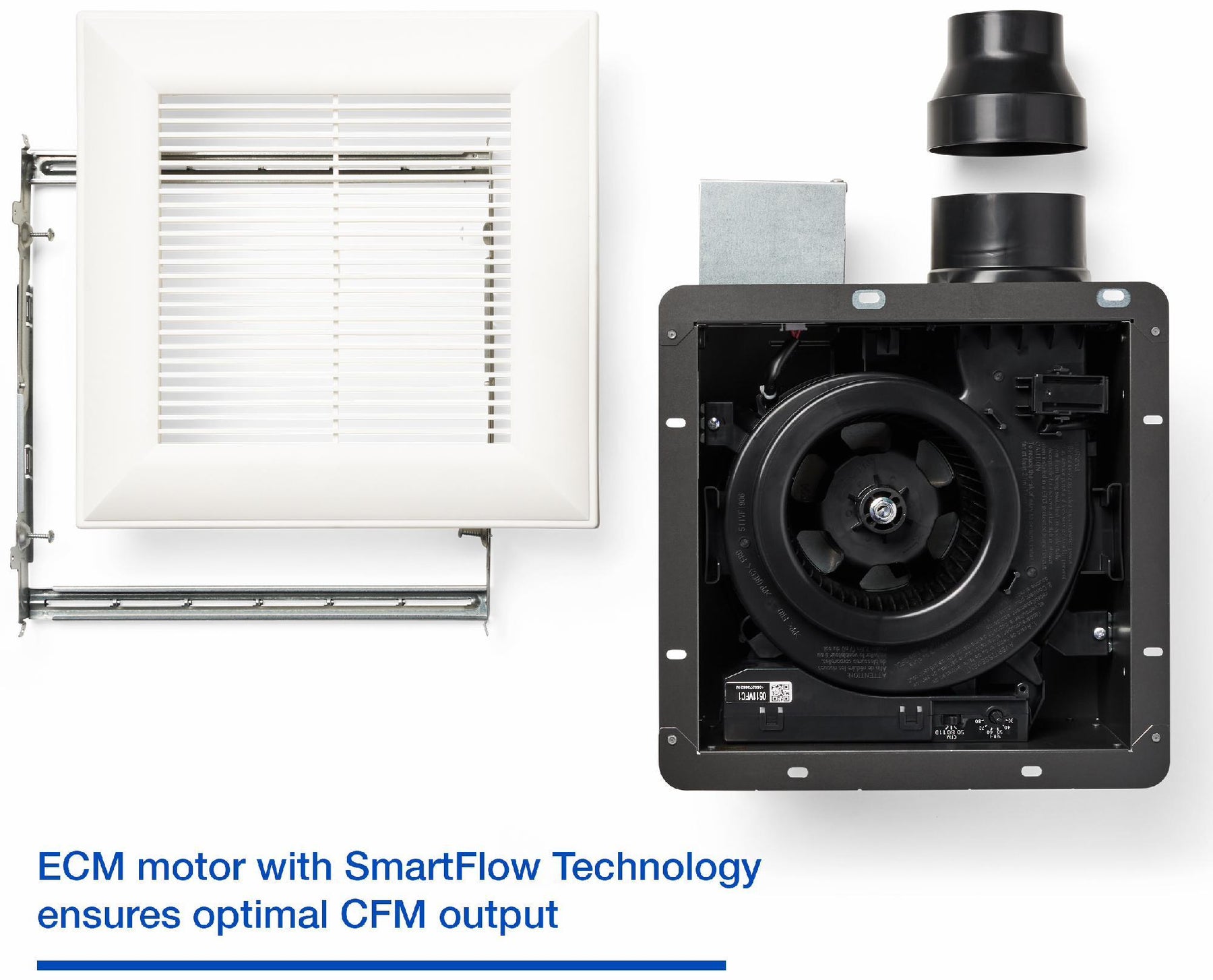

  • Revolutionary ECM motor with SmartFlow™ Technology ensures optimal CFM output
  • Temporary clip molded into casing holds fan in place while installer fastens fan to can safely
  • UL listed for tub/shower enclosure when GFCI protected and UL listed for use with the Panasonic Ceiling Radiation Damper (model # PC-RD05C5)
  • 6-year warranty ECM motor, 3-year warranty on parts, 5 year on LED chip panel
  • Pre-installed alignment guides help guide adaptor assembly into place during installation for a tight precision fit

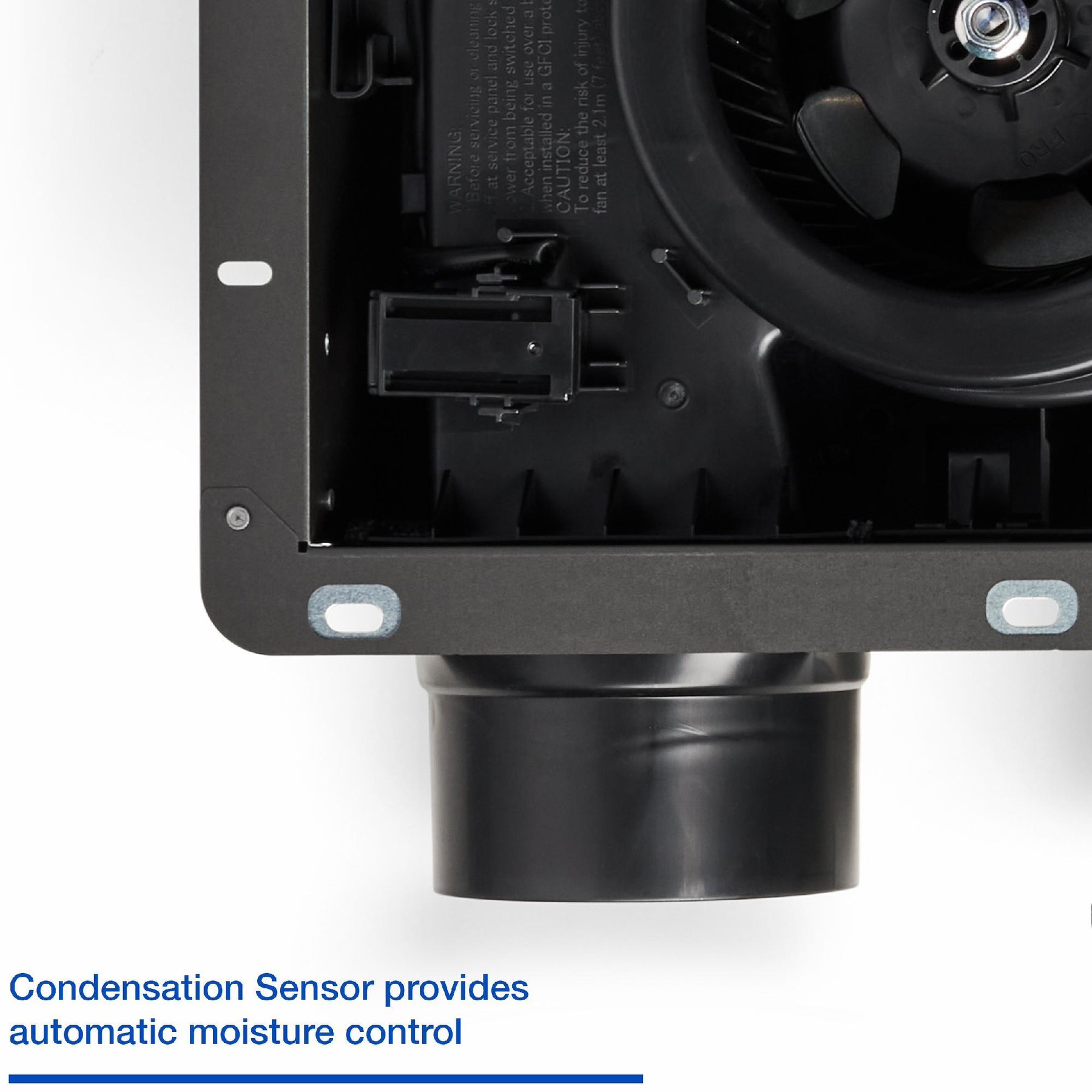

  • Condensation Sensor provides hands-free operation and automatic moisture control
  • Plastic standard 4” adapter with backdraft damper/shutter allows for better air tightness. (3" reducer included in box)
  • Slide and snap-in junction box and duct collar provide even greater installation flexibility

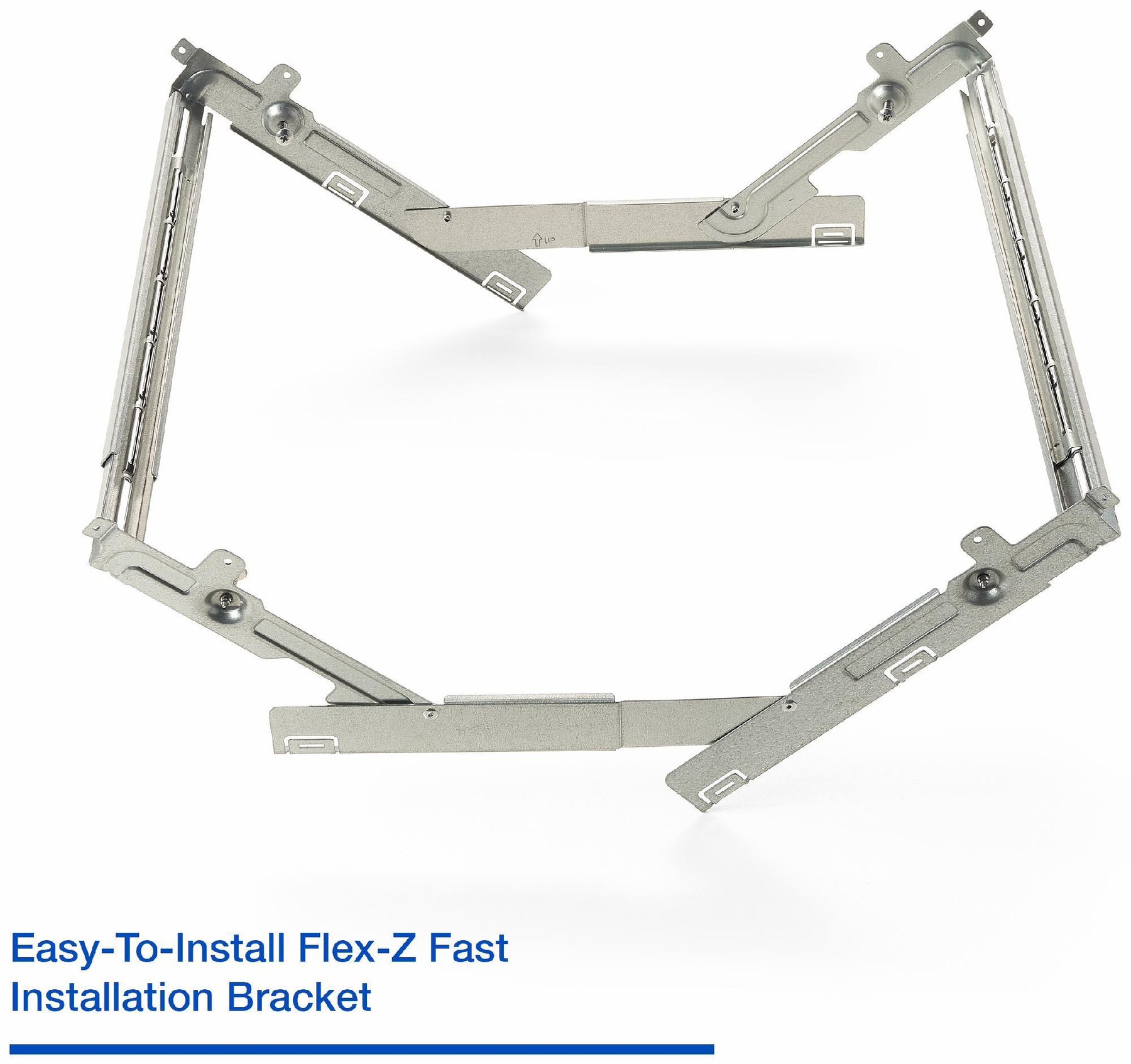

  • Single-hinged Flex-Z Fast® bracket provides flexible, fast and easy installation
  • Can be used to comply with ASHRAE 62.2, LEED, IAP and California Title 24
Specifications

Attributes & Dimensions
SKU FV0511VFC1
Splashes Part ID 5040431
UPC 885170376113
Brand Panasonic
Series WhisperFit
Product Type Bathroom Fans
Duct Size 4"
Features Bathroom Fans Humidity/Motion Activated
Mounting Style Ceiling Mount
Origin Mexico
Speed Variable
Voltage 120
Item Weight 4.3 kg
Item Dimensions L 33.02 x W 33.02 x H 18.75 (cm) (in.)
