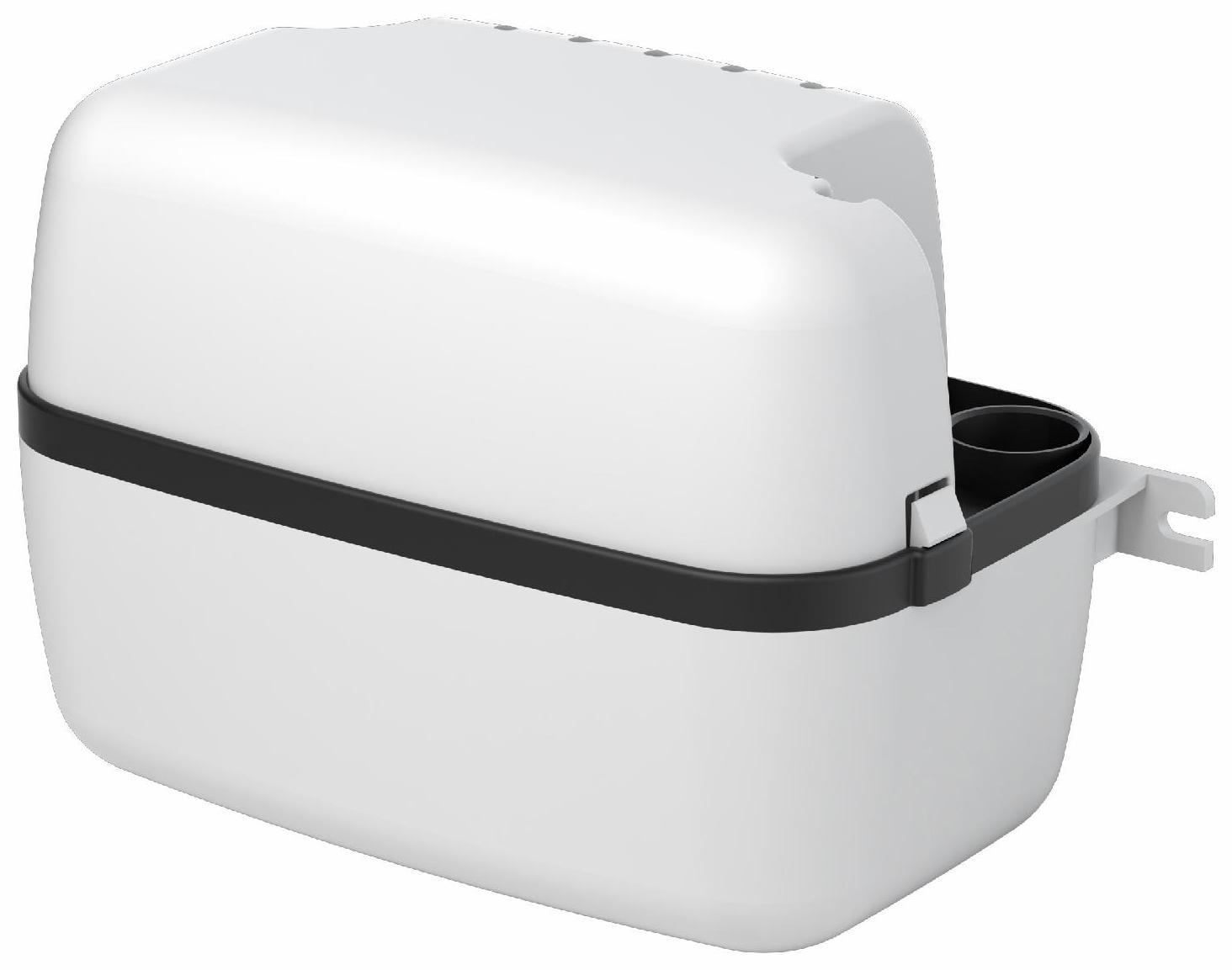

The SaniCondens is a small pump that may be used to pump condensate from condensing boilers, HVAC system, water heater systems, etc. The SaniCondens will pump condensate water up to 15 ft. in height and/or 150 ft. away from a soil stack. Condensate water has the potential to cause property damage or even create health hazards that can affect indoor air quality. Many times, the condensate is not able to drain through gravity to an existing drain line. This is the reason a condensate pump is essential to many residential and commercial applications. The inside of the SaniCondens comprises of a float mechanism, which starts and stops the unit, and the motor, which drives the pump. When the water enters the SaniCondens, it activates the float mechanism, which in turn starts the motor. The motor is sealed for life in an oil filled enclosure. A spindle/shaft drives the impeller and therefore the moving parts are kept to an absolute minimum. Water enters the chamber and is pumped away into the sanitary sewer.
- Dimensions:
- H=6.625, W=9.5, D=5.625
- Origin:
- France
- Finish:
- White
- Discharge up to: ↑ 15 Ft. ↑ and/or ←150 Ft.→
- Pump Type: CONDENSATE PUMP
- Discharge flow rate at 15’: 30 gal per hour (114 liters per hour). Discharge flow rate at 3’: 86 gal per hour (326 liters per hour)
- Max. Temperature: 160°F (70°C)
- Discharge pipe diameter: 3⁄8“ vinyl tubing
- Power/Electrical Information: 120V – 60 Hz / 1/30HP / 1.5 A
