Saniplus Round Toilet Combo with Macerating Pump for Full Bathroom Application - White 002 + 083 + 005 Saniflo

See more from Saniflo SKU: 002 + 083 + 005
Finish - White
Save $-2,058.72
/
1 available for immediate shipping.
Select My Store to view local stock.
Free Shipping Over $50*
Nationwide Reach
Easy Returns
Price Match Promise
Save $-2,058.72
/
Product Image
Saniplus Round Toilet Combo with Macerating Pump for Full Bathroom Application - White 002 + 083 + 005 Saniflo
Save $-2,058.72
/

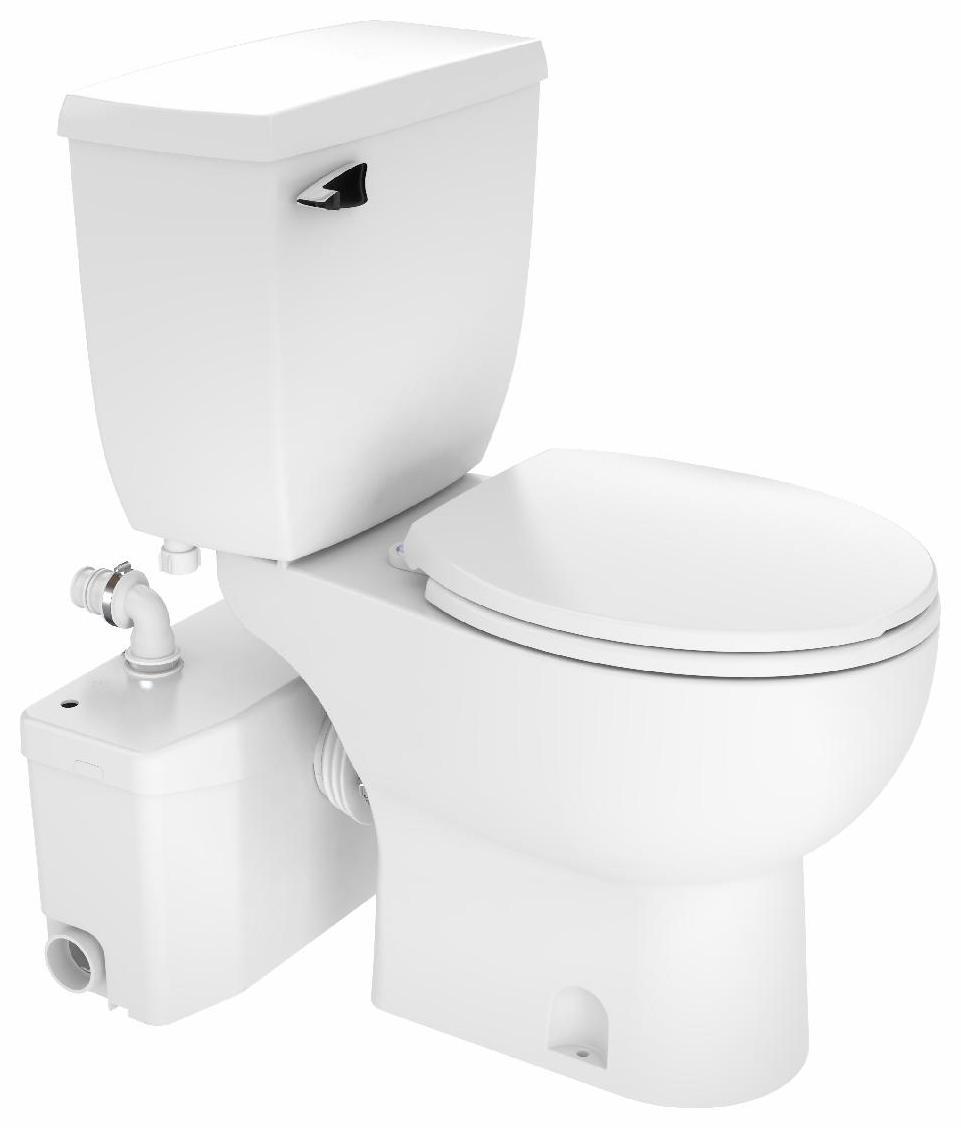

This complete system comes with a SaniPlus macerator pump and SaniFlush two piece round bowl and white tank. The Saniplus is a system that is used to install a complete bathroom up to 15 ft. below the sewer line, or even up to 150 ft. away from a soil stack. It can handle the effluent from a toilet, sink, bathtub and shower. The inside of the Saniplus comprises of a pressure chamber, which starts and stops the unit, and the motor, which drives the stainless steel macerator blades and the pump.
  • Addition to the toilet waste, the Saniplus will also discharge gray water from a variety of other sanitary fixtures such as: a sink, a bathtub, a shower and a urinal when adding a bathtub or shower, a base will have to be constructed this base should be made out of a 2 in. x 6 in. (minimum) or 2 in. x 8 in. (recommended) on edge, to allow for the installation of a P-trap and the required 1/4 in. per foot gravity flow towards the pump unit
  • Wastewater from other sanitary fixtures is discharged into the Saniplus via two 2 in. inlets on either side of the housing either one or both inlets can be used as required the discharge elbow on top of the Saniplus can be turned either to the left, to the right, or towards the back, depending on the discharge installation a non-return valve, which comes already assembled on the discharge elbow, prevents back flow into the unit
  • Design of this model consists of vibration absorbers which enable the reduction of operating sound by reducing the transmitted sounds from any location where such resonance transmission could occur this new design reduces the operating sound of this pump by 10dB
  • Unit has been designed with a vent connection on the lid all plumbing codes require connection to a vent system please note that the vent system should be a two-way air vent the use of mechanical vents, air admittance valves or similar devices are not permitted as these are considered one-way air vent systems it is also highly recommended for the macerator/pump to be connected to a Ground Fault Interrupter (GFI) circuit
Specifications

Attributes & Dimensions
SKU 002 + 083 + 005
Splashes Part ID 7005052
UPC 859925002268
Brand Saniflo
Series
Product Type Composting & Macerating Toilets
Finish White
Toilet Type Macerating
Item Weight 85.0 lb.
Item Dimensions L 26.0 x W 20.0 x H 31.0 (in.)
